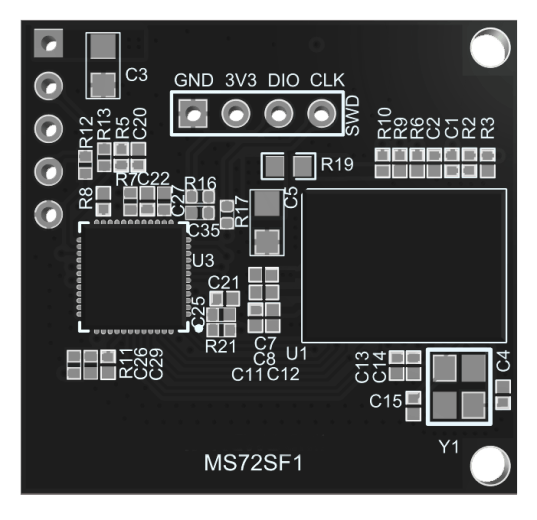

MS72SF1
60GHz Millimeter-Wave Radar Module for High-Precision Sensing
Compared with traditional perception methods such as vision, infrared, and laser, millimeter-wave radar is not affected by light, and can realize non-sensing and active monitoring of indoor occupants throughout the day, and has the function of personal privacy protection. It is currently the best sensor for home scene applications. This product adopts domestically produced chips and is independently controllable to realize accurate tracking and positioning of many people in the room. At the same time, it can detect people in static states such as reading and sleeping, and can suppress interference such as curtains and green plants. This product has the advantages of low cost, domestic production, high reliability and high performance.
Product Overview
MS72SF12SF1
• Unaffected by light
• Personal privacy protection
• Suppression of interference
• Accurate tracking and positioning of many people in the room
• Can detect people in static states such as reading and sleeping, and suppress interference
Dimension(mm): 29.36*28*2.4mm
Detection Distance: 0.5~8m
Peak Power Consumption: 1.7w
Operation Frequency: 60-64GHz
| Parameters |
|---|
| Installation method: top installation |
| Max Consumption：1.7w |
| Detection Distance：0.5~8m，(The effective projection ground is a circle with a radius of 3.5 meters, and the installation height is 2.7 meters) |
| Number of Trackers：≤10 |
| Azimuth Coverage：±60° |
| Working Frequency：60-64GHz |
| Pitch angle coverage：±60° |
| Processing Period：≤30ms |
| Dimension：29.36*28mm |
Related Products

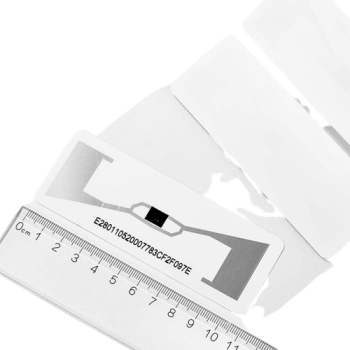

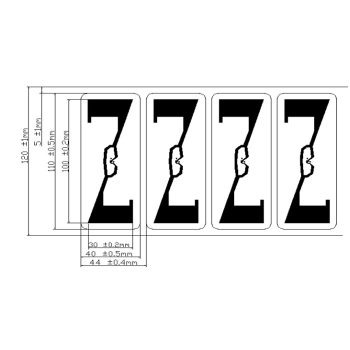

Model:Â GE- HL-CL7203L8 RFID Tag Sticker for Vehicle Windshield
