| Frequency | 860~960MHz |
|---|---|
| Protocol | ISO/IEC 18000-6C EPC Global GEN2 Class1 |
| Chip | M4QT/H9 |
| Sensitivity | -17dB~-19dB |
| Reading Range | 0~8m |
| EPC Area | 96bits |
| User Area | 512bits |
| TID area: | 32bits |
| Access password: | 32 bits |
| Kill password: | 32 bits |
| Working mode: | Passive |
| Data storage: | >10 years |
| Rewriting: | >100000 times |
| Polarization: | Liner polarization |

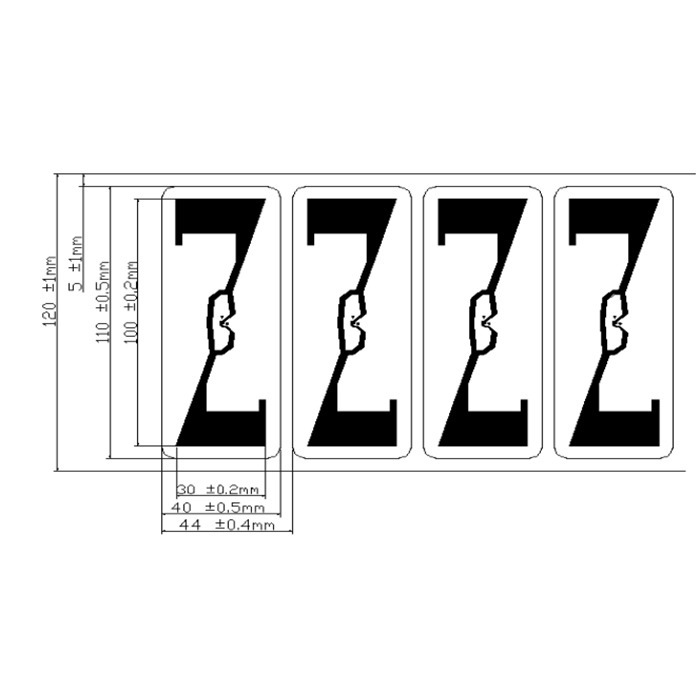

| Size | 110x40mm (±0.5mm) |
|---|---|
| Housing Material | PET film, special fragile Paper |
| Weight | 1.5g/pc |
| Package | 1000 ~ 3000pcs/roll |
| Installing | With self adhesive |
| Working Temperature | -20°C ~ 75°C |
| Storage Temperature | -40°C ~ 80°C |
| Relative Humidity | 5% ~ 95% RH non-condensing |
Related Products
OVERVIEW:
This label is specially designed for anti-liquid application,such as water,drink,alcohol,cosmetics,perfume,blood bag,etc.It is complaint with EPC C1G2 (ISO18000-6C) standard.
OVERVIEW:
This label is specially designed for anti-liquid applications, such as water, drinks, alcohol, cosmetics, perfume, blood bags, etc. It is compliant with the EPC C1G2 (ISO18000-6C) standard.
OVERVIEW:
RFID tags applied to patients are generally made of Thermal paper, with an RFID chip and antenna embedded inside.
OVERVIEW:
With the industry-leading RF Performance, the FM13UF0051E is particularly well suited for inventory management applications, supply chain management, personnel or vehicle identification, library management, airline luggage tracking, intelligent manufacturing and other fields.
OVERVIEW:
This is an ideal anti-metal NFC tag for metal devices such as mobile phones and computers.
OVERVIEW:
This circle antenna represents an excellent option which is suitable for library, gaming and toys, anti-counterfeiting, any other NFC applications, etc.
OVERVIEW:
The most important feature of an RFID flag tag is that it is not totally adhered to the object’s surface. One half of the tag stands on the object’s surface like a small flag. This tag performs similarly to a metal-resistant tag, and its RF function is unaffected by metal substances. Therefore, RFID flag tags can be used in a variety of applications.
OVERVIEW:
This label is specially designed for bottled water, beverages, alcohol, cosmetics, perfume, and other bottled liquid applications, and complies with EPC C1G2 (ISO18000-6C) standards.
OVERVIEW:
The tag can withstand more than 200 industrial washing cycles,with thin thickness,long reading distance,pressure and high temperature resistance.
This UHF on-metal label can be applied on any metallic items.
OVERVIEW:
This jewelry tag features an RFID chip on the tail of the tag. When the tail is cut off, the tag cannot be identified and can prevent theft.
