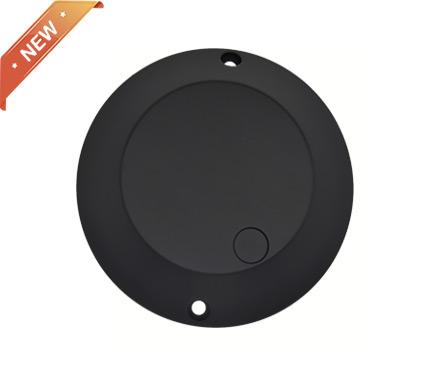

GEDF570 IoT Radar Level Sensor
- Non-contact measurement, 4m range
- Wireless transmission(NB-IoT, LoRaWAN, 4G, Multi-tech)
- 25.5Ah super large battery
- IP68&IK10 Rated
GEDF570 Radar Level Sensor
GEDF570 radar level sensor can measure the distance from sensor to the surface of liquid/solid, and send data to cloud server via built-in wireless module. Then user can monitor the level remotely.
Widely applicable for the close container or open container, or even the river. Furthermore it can calculate the volume based on the dimension of container (platform features).
Features
- 24G Microwave Radar technology
4m range, non-contact measurement - Multiple Wireless Transmission Options
NB-IoT, LoRaWAN, 4G, Cat-M - Remote Monitoring
Dingtek SAAS or customer self-own SAAS - Super Large Battery
25.5Ah large battery, low power consumption - IP68&IK10 Rated
Suitable for outdoor using - Easy Integration
Dingtek will provide parsed code and technical support
Network Diagram
Sensor →Base Station/Gateway→Cloud Server→Application
| Dimension: | 183*183*38mm |
|---|---|
| Color: | Black |
| Material: | ABS+PC |
| Weight: | 900g |
| Measurement principle: | Radar |
| Measuring range: | 4meters |
| Accuracy: | +/-0.1m |
| Temperature Measurement: | -30~+85℃ |
| Wireless: | LoRaWAN:CN470/EU868/US915/AS923/RU868/IN865/KR920Mhz NB-IoT:B3/B5/B8/B20/B28 |
| Internal Battery: | 25.5Ah@ 3.6V lithium battery |
| Battery life : | More than 5 years (upload 4 times every day, cycle detection time 10min) |
| Installation: | By screws and Metal bracket. |
| Working temperature: | -30℃ to 85℃. |
| Waterproof Level: | IP68 |
