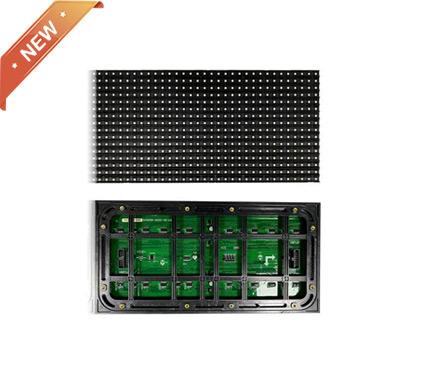

Gecolen LED parking Space Remaining Display Screen
Parking Space Availability Display Screen is generally placed at the entrance or other prominent locations of the parking lot.
It receives data from server or application in real time, and show the availability of parking spaces in different zones or the entire parking area by numbers, arrows and text.
With the guidance, drivers to quickly find vacant parking spaces, so as to maximize the use of parking space resources. It is available 24/7.
Features
- Wireless transmission 4G/LoRaWAN
- Can be used together with parking occupancy sensors
- Low power consumption, stable performance
- Customizable (screen size, text information, arrow direction, language, etc.)
- Dual color optional (red/yellow/green)
- IP65 waterproof , suitable for indoor and outdoor use
| Pixel spacing: | 10mm |
|---|---|
| Scanning mode: | 4S |
| Module pixel point: | 32 16 = 512 points |
| Drive IC: | 16208 |
| Lamp bead model: | 3535 |
| Pixel point composition: | 1R1G |
| Physical density : | 10,000 points/m2 |
| Color : | R、 G |
| Brightness : | >3500CD/m2 |
| Refresh frequency : | >1920HZ |
| Frame chang frequency : | 60Hz |
| Optimal sight distance : | 10~100M |
| Operating temperature : | -25°C~+55°C |
| Relative humidity : | 10%~95% |
| Average power consumption : | 200 300 W/m2 (depending on the video source played) |
| Maximum power consumption : | 800W/m2 |
| Operating voltage : | 220V±10%, 50/60Hz |
| Switching power supply load : | 5V/40A, 5V/30A |
| Screen life : | 100000 hours |
| Horizontal viewing angle : | >120° |
| Vertical viewing angle : | >120° |
| Interface mode : | HUB75 |
