Applications
- Energy Industry: Oil Pipes, Gas Tanks and Cylinders
- Public Security: Fire Extinguisher
- Construction: Steel Pipes
Support printer
Zebra ZT410 Silver line,Sato CL4NX,Printronix T4000,Postek Tx3r,etc.
Mechanical Specifications
Inlay: PET + AL
Face Material: PET
B Side Material: Anti-Metal Material
Features

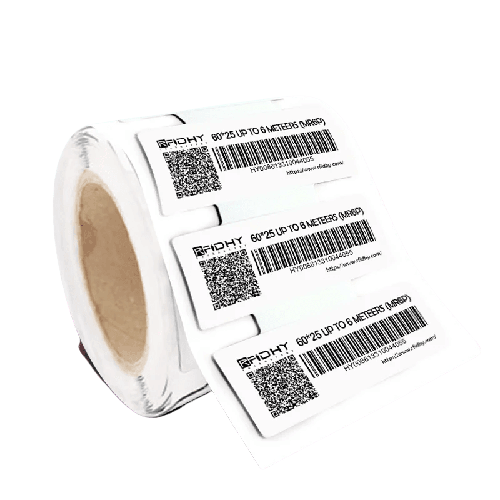

- On metal RFID tag
- Available with pressure-sensitive adhesive
- Available with EPC encoding, barcode, and human-readable content
- Ideal for Large Scale Production and Application
| Type | HY-FT 6025Z-T |
|---|---|
| Size (mm) | 60*25*2.4 |
| Other Model Size(mm) | 51*15*1.1; 50*50*1.0; 60*25*1.0; 60*25*1.0;70*30*1.0; 70*40*1.0;70*25*1.0; 80*20*1.0; 96*25*1.0 |
| Mounting Method | Self-Adhesive |
| Standard Packing | 500PCS/Roll |
| Electronic Specifications | |
| Operating Frequency | 865~868 MHz (EU) |
| Chip Type | Impinj Monza 4E,M4QT, MR6P |
| EPC | 128 (96) bits |
| User Memory | 32 (64) bits |
| Reading Distance | up to 10m depending on reader type and environment |
