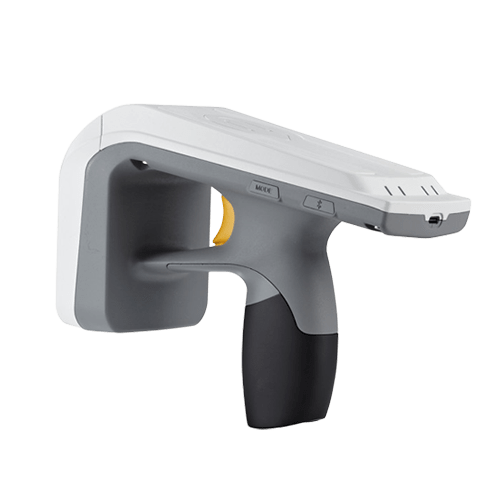

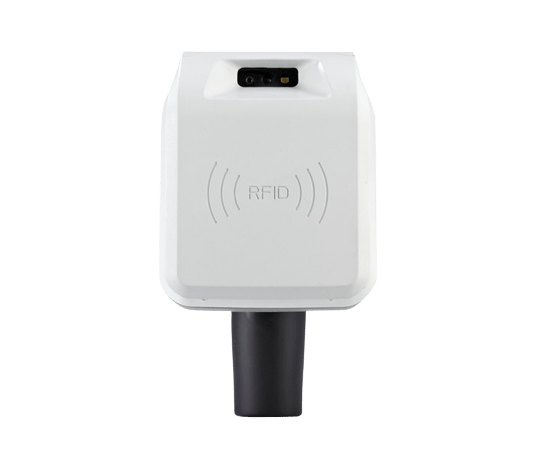

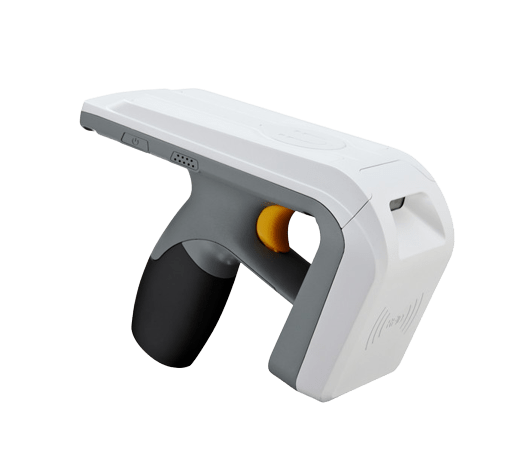

GE-7202K8 RFID Bluetooth Handheld Reader
Model: GE–7202K8 Bluetooth Handheld Reader
- Support Bluetooth V4.2/2.1+EDR
- Long Read Distance With 10M
- Impinj Indy R2000 Chipset
- Long Battery Life of Up To 8 Hours
- 1.2M Drop Test
- Flexible working with most Android OS devices
- Impinj Indy R2000 chipset brings strong prime mover
- 5000mAh large battery capacity supports 8 hours continue working ability
- Humanist design with hand grip ergonomic for comfortable
- Various communication transfer method options match various applications
Widely used in ITS/ Smart Grid, execution inspection, warehousing & logistics, Smart retail
Product Specifications:
| Performance Characteristics | |
|---|---|
| Bluetooth | Bluetooth V2.1+EDR/V3.0+HS/4.1 communication distance is not less than 10m |
| Indicators | Bluetooth Indicator, Power Indicator, Mode Indicator, Status Indicator |
| Barcode Engine | 1D Laser or 2D Imager Barcode Scanner |
| RFID | |
| Air Protocols | ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2， C2GEN2 optional |
| Reading Range | 3~10m (According to Tag & Environment) |
| Antenna | 1* 4dBi circular |
| RF output | 0-30dBm (±1dBm) adjustable |
| Frequency | EU: 865-868MHz (ETSI EN 302 208) Other frequency & standard optional |
| Performance Characteristics | |
| Dimensions(L x W x H) | 130mm(L)*83.5mm(W)*176mm(H) |
| Net. weight | 0.4Kg |
| User Input | Function Button, Trigger, Bluetooth Button, Power Button |
| Performance Characteristics | |
| Storage Temp. | -30℃～+65℃ |
| Operating Temp. | -20℃～+55℃ |
| Humidity | 5% RH～95%RH (non-condensing) |
| Drop Test | 1.2M Drop to concrete |
| Dust & Water Proof | IP53 |
| Power Supply | |
| Battery Supply | 3.7V 5000mAh Li-ion battery |
| Main Battery(Replaceable ) | DC 5V adapter, follow local standards |
