GEDT322 Smart Odor Sensor
Remote monitoring the level of amine series and sulfur gas, specially designed for smart toilet use. Wireless transmission, battery/DC power operated.

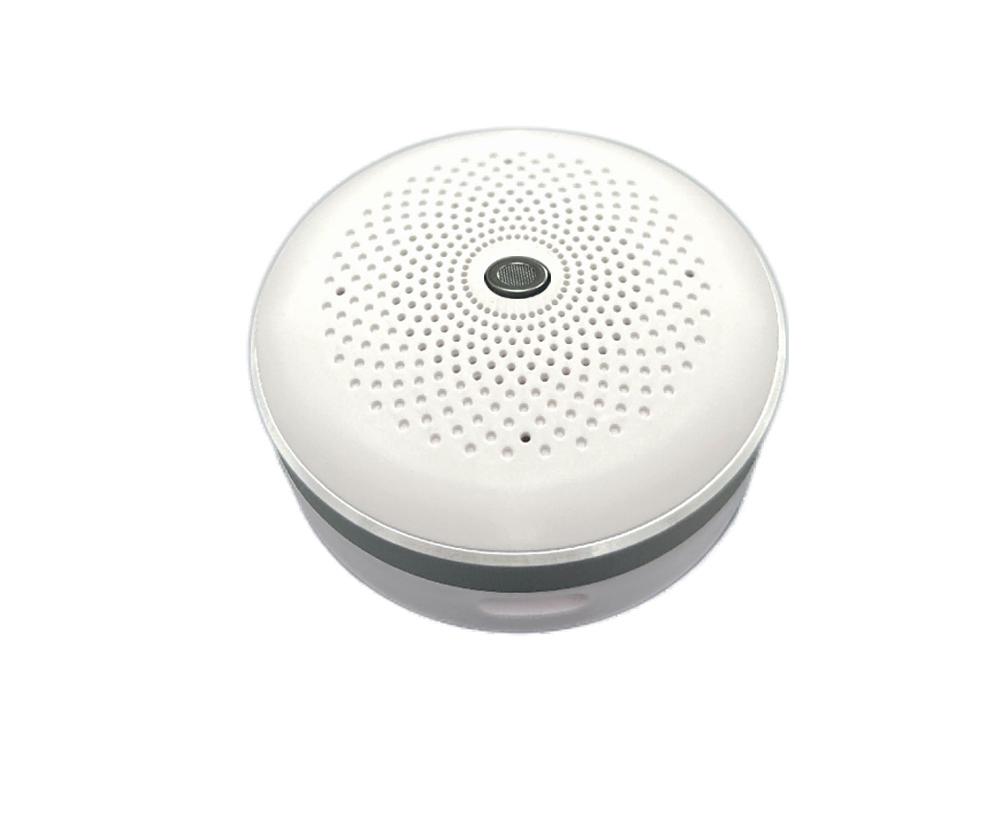

GEDT322 Smart Odor Sensor
GEDT322 is an advanced, configurable indoor odor sensor aimed at building automation. Users can monitor the level of amine series, sulfur gas, temperature, humidity remotely through built-in NB-IoT wireless module. The outputs are 0-30 PPM. Widely applicable for smart public toilets, garbage room, public spaces, etc
Features
- Detection of multiple gases
- Remote control and monitoring
- Low power consumption
- Battery powered or DC powered
- LED indicator
- Easily accessible
Network Diagram
When the device detects the status of odor, it sends a frame to the base station,
then base station forward to cloud server, then to application. Finally user can monitor the status remotely.
SAAS
InstallationÂ
| Odor Measurement Elements : | amine series, sulfur gas |
|---|---|
| Temperature Measurement : | -30~+85℃(±0.3℃) |
| Humidity Measurement : | 0-90%(±2%RH) |
| Odor Output Level : | 0-30PPM; |
| Power Consumption : | Upload ≤600mA; Detection≤100mA |
| Internal Battery : | 1000mAh@ 3.7V Lithium Battery, Life time 10 days |
| Recharge Interface : | Micro-USB 500mA@5V |
| Recharge LED : | Red: not full battery; |
| Blue : | Full battery |
| Wireless NB-IoT Band : | B3/5/8/20/28. |
| Protocol : | TCP/MQTT |
| Working Environment : | -40 ~ 85℃, 5～95%RH |
