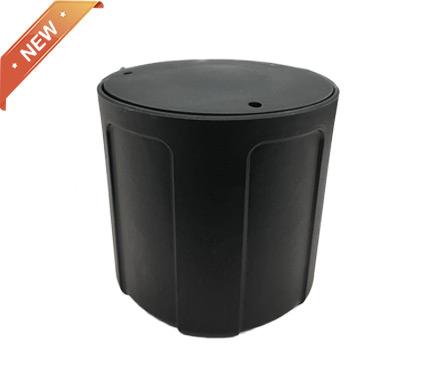

GEDO209 Underground Parking Occupancy Sensor
GEDO209 parking occupancy sensor incorporates microwave radar measurement and geomagnetic detection, the accuracy can acheive 99%. The errors only happen while extreme environment, like flood and thunder and etc.
Data is sent to cloud server through built-in NB-IoT/LoRaWAN/Multi-tech/4G wireless module. Users can monitor if the parking lot/space is occupied remotely.
Features
- Microwave Radar&Geomagnetic Technology
High Accuracy - Multiple Wireless Transmission Options
NB-IoT, LoRaWAN, 4G, Cat-M - Remote Monitoring
Dingtek SAAS or customer self-own SAAS - Super Large Battery
38Ah large battery, low power consumption - IP68&IK10 Rated
Suitable for outdoor using - Easy Integration
Dingtek will provide parsed code and technical support
Network Diagram
Sensor →Base Station/Gateway→Cloud Server→Application
| Dimension: | Φ 114(top)* Φ 104(bottom)*100(height)mm |
|---|---|
| Color: | Black |
| Material: | Nylon |
| Weight: | 1000g |
| Measurement : | 24GHz Microwave Radar+Geomagnetic |
| Temperature Measurement: | -30~+85℃(±0.3℃) |
| Humidity Measurement: | 0-90%(±2%RH) |
| Wireless: | NB-IoT B3/B5/B8/B20/B28. |
| Internal Battery: | Lithium battery, 38Ah@ 3.6V. |
| Battery life: | More than 7 years (upload 15 times every day, cycle detection time 30min |
| Upgrade/Configuration: | Bluetooth |
| Installation: | Underground mounting |
| Working temperature: | -30℃ to 85℃ |
| Waterproof: | IP68 |
