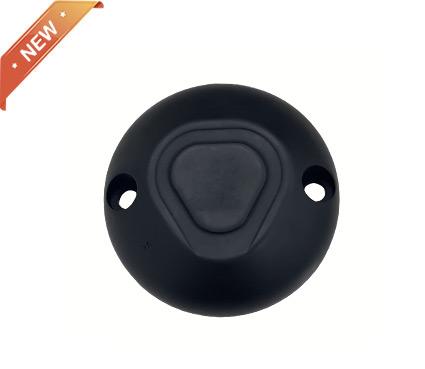

GEDO208 Smart Parking Occupancy Sensor
The GEDO208 parking occupancy sensor incorporates microwave radar range measurement and magnetic detection.
With the LoRaWAN wireless module, it uploades data to cloud server through LoRaWAN gateway and network server.
With the redundant technology of sensors, it achieves the accuracy of 99%.
Features
- Parking space occupancy monitoring
- Buzzer notification 50db@10cm.
- IP68 for outdoor using
- Microwave Radar & Geomagnetic Technology
- Temperature and humidity measurement
- Small size and easy install
Network Diagram
With wireless module, it upload data to application server. Finally user can monitor the status remotely.
It is applicable for smart parking application, parking bay booking and etc.
SAAS
Users can check data by CNDingtek cloud application or their own applications. CNDingtek will provide protocol and manual after order placed.
| Dimension: | 100*100*26mm |
|---|---|
| Color: | Black |
| Material: | ABS+PC. |
| Weight: | 158g. |
| Measurement : | 24GHz Microwave Radar+Magnetic. |
| Temperature Measurement: | -30~+85℃(±0.3℃) |
| Humidity Measurement: | 0-90%(±2%RH) |
| Brands: | LoRaWAN CN470/IN865/EU868/US915/ AU915/AS923, etc. Working Mode/Activation: Class A,OTAA,MAC1.03. |
| Internal Battery: | Non-rechargeable Lithium thionyl chloride battery, ER18505*2, 8000mAh@ 3.6V |
| Battery life: | About 1.75 years (upload 20 times every day, cycle detection time 30min) |
| Upgrade/Configuration: | Bluetooth |
| Installation: | Surface-Mounting. |
| Working temperature: | -30℃ to 85℃ |
| Waterproof: | IP68 |
