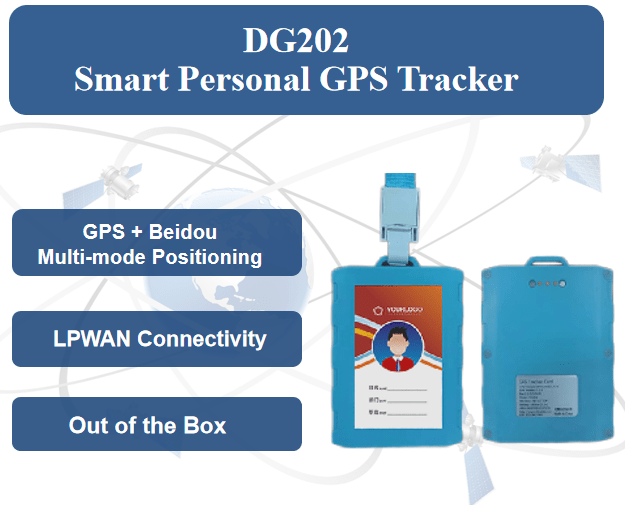

GEDG202 Smart Personal GPS Tracker

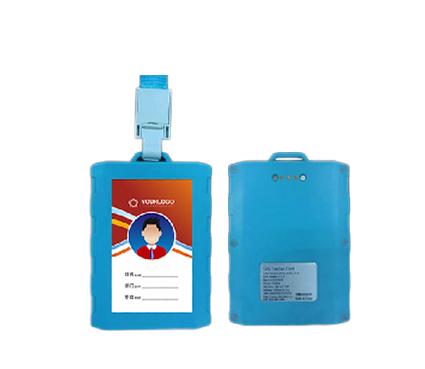

GEDG202 terminal is a personal GPS tracker mainly designed for outdoor workers and smart student ID cards. The GEDG202 terminal is built using the NB-IoT module. It transmits the status via the NB-IoT SIM card to the base station, then via the internet network to the network server and application server. Finally, the user can monitor its position remotely.
Features
- Low power consumption
- Wireless transmission
- Delete Blocks
- GPS+Beidou positioning
- IP68 waterproof
- Extra-Long Standby
Network Diagram
GEDG202 Personal Human Tracking is build through the NB-IoT module. it transmit the status via NB-IoT sim card to base station,then via internet network to network server to application server. Finally user can monitor the status remotely.
SAAS
With the application software user can monitor its location, tracking and history data.
| Outer casing size : | 66x86x12.5mm. |
|---|---|
| Personnel info size : | 64*42mm. |
| LED : | Two LEDs; Red/Green color every LED |
| Wearing : | Lanyard wear |
| Battery : | 1500mah/3.7V lithium battery |
| Charger port : | Pogo Pin |
| Adapter : | DC5V/1A |
| Sleep current : | ≤50uA |
| Standby time : | 10days |
| Weight : | 78g |
| Operating Temperature : | -20℃~+75℃ |
| Protection level : | IP68 |
| Wireless : | Cellular IoT connectivity NB-IoT/GPRS/4G |
| Frequency : | NB-IoT: B3/B5/B8/B20/B28 4G: LTE-FDD:B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41 |
| GPS : | GPS; low power tracking function |
| Accuracy : | <2.5 meters（CEP50） |
| Capture sensitivity : | -148dBm |
| Tracking sensitivity : | -162dBm |
| Time to first positioning : | 32s |
