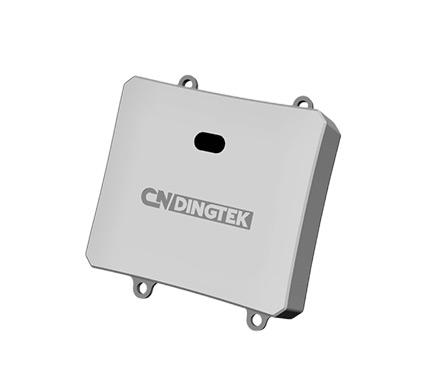

GEDF701 Indoor Smart Waste Bin Sensor
Remote monitoring full/empty status of indoor waste bin, measurement range up to 1.2m. Wireless transmission, battery operated, IP65 waterproof.

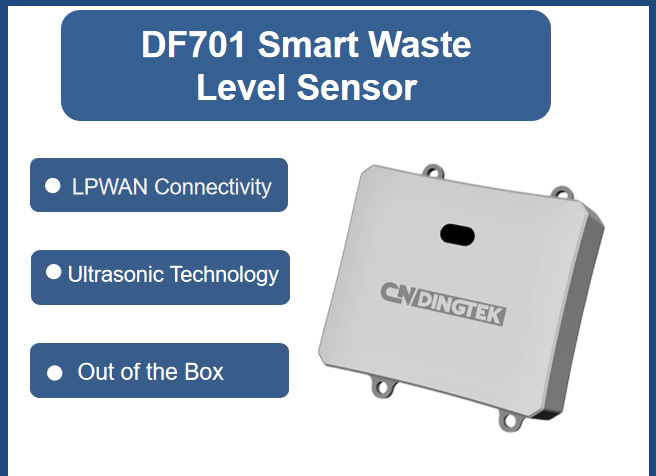

GEDF701 Smart Waste Level Sensor
GEDF701 sensor is designed to monitor the indoor waste bin’s full/empty status. The maximum measuring distance is up to 1.2 meters.
Through a built-in wireless module (NB-IoT, LoRaWAN), users can monitor the waste bin fill-level remotely. Based on low power consumption, the battery can work for more than 2 years at 4 reports per day.
It is widely applicable for hospitals, schools, campuses, dormitories, offices, shopping malls, hotels, stadiums, public spaces, etc.
Features
- Bin Level Measurement
- Remote monitoring
- Wireless transmission
- Low Power Consumption
- IP65 Waterproof
- Easy Installation
Network Diagram
Sensor →Base Station/Gateway→Cloud Server→Application
SAAS
| Dimension : | 67mm*59mm*23mm |
|---|---|
| Shell Material : | ABS |
| Color : | Grey |
| Principle : | Laser |
| Detection Range : | 1.5meters (White Target 88% reflectance level, Indoor) |
| Blind area : | ≤5cm |
| Accuracy of height : | 3cm |
| Wireless : | NB-IoT/LoRaWAN |
| Frequency: | B-IoT: B3/B5/B8/B20/B28 and so on LoRaWAN: CN470/EU868/US915/AS923/RU868/IN865/KR920Mhz |
| Internal Battery : | Lithium Battery ER18505, 4000mAh @ 3.6V |
| Battery Life : | 2 years at 4 hours report interval. |
| Working Temperature : | -20 ~ +70℃ |
| Storage Temperature : | -40 ~ +85℃ |
| Storage Temperature : | -40 ~ +85℃ |
| Protection Level : | IP65 |
