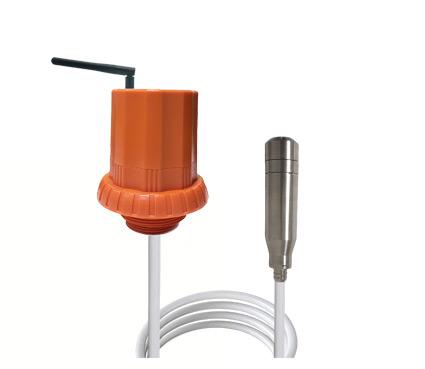

GEDF556 Pressure Liquid Level Sensor
Pressure-based liquid level sensor, cable length is up to 15m customizable, 0.5% high accuracy. Wireless transmission, battery operated,
GEDF556 Pressure Liquid Level Sensor
GEDF556 is a pressure-based liquid level sensor, with wireless transmission module and battery.
With a submerged pressure transducer, DF556 can acheive 0.5% accuracy of the liquid height. The standard measurement range is 2.5m, up to 15m customizable.
It is integrated with wireless module like NB-IoT, LoRaWAN, Sigfox, CAT-M, GPRS, 4G-LTE and etc. Data is uploaded to cloud server in protocol TCP, MQTT, LoRaWAN or other customized protocol. Widely applicable for liquid tanks, sewage, industrial water, pool, rivers and etc.
Features
- Pressure-based
- Liquid Level Detection
- Wireless Transmission
- Remote Monitoring
- ATEX certification
- IP67 Waterproof
- Low Power Consumption
Network Diagram
SAAS
| Dimensions: | 122*96*96mm(Body), 140*30*30mm(Pressure part). |
|---|---|
| Liquid level accuracy : | 0.5%FS |
| Resolution : | 1mm |
| Cable Length : | 2.5m (Customizable) |
| Weight: | 820g |
| Color: | Blue (body), Silver (pressure part). |
| Material : | ABS(body), 304#stainless steel (pressure part), PTFE (cable between pressure part and body). |
| Temperature range : | -30℃ to 85℃ |
| Internal Battery : | Non-rechargeable Lithium Thionyl Chloride Battery, ER26500*1，8500mAh@ 3.6V |
| Wireless Option : | NB-IoT / LoRaWAN / Sigfox / 4G-LTE / NB-IoT+Cat-M+GPRS. |
