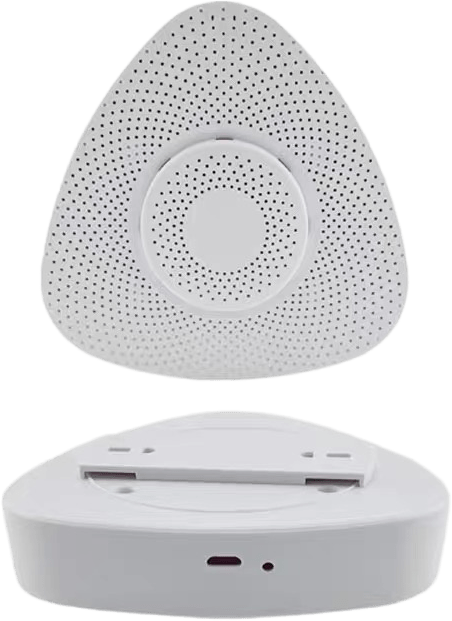

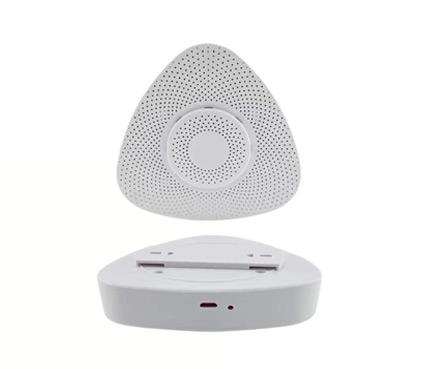

GEDC520 Bi-directional People Counter
GEDC520 is a people counter which is designed for managing crowd control in places like conference rooms, hotels, parks, factories, etc.
With millimeter wave radar technology, it can accurately detect and count the number of people entering and exiting.
When people number exceeds preset threshold, DC520 automatically uploads alarm information to specified cloud server through the built-in wireless module. Users can view and analyze data remotely.
Features
- Millimeter wave radar technology
- Dashboard monitoring / Email notification / SMS
- notification (platform related)
- Support ODM/OEM
- Bi-directional people counting, over-limit alarm
- Multiple wireless transmission options, global frequency bands available
- Small size, easy to install
Network Diagram
When the number of people exceeds the limit, it sends a frame to the base station, then base station forward to cloud server, then to application. Finally user can monitor the status remotely.
SAAS
Users can check data Dingtek’s software application or self-own software applications.
| Principle: | Millimeter wave radar |
|---|---|
| Detection range: | ≤3m |
| Target speed: | ≤1.5m/s |
| Delay time: | ≤0.25s |
| Target Distance in the same direction: | ≥0.85m |
| Wireless options & frequency bands: | NB-IoT: B3/B5/B8/B20/B28 etc LoRaWAN: CN470/IN865/EU868/US915/AU915/AS923, etc 4G LTE-TDD:B34/B38/B39/B40/B41, LTE-FDD:B1/B3/B5/B7/B8/B20/B28 |
| Working temperature: | -20 ~ +75℃ |
| Storage temperature: | -40 ~ +85℃ |
| Waterproof: | IP54 |
