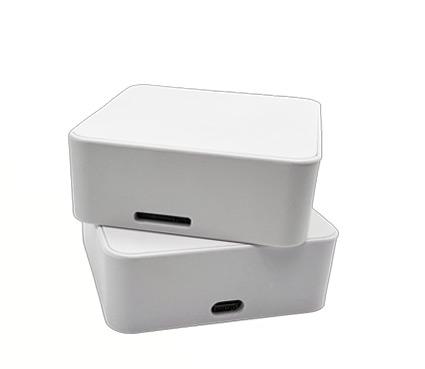

Human Falling Detection Radar
GEDB100 is a human falling detector; when someone falls, the information will be immediately transmitted to the cloud server through the built-in 4G wireless module.
Users can observe their status information remotely. Data transmission is carried out through 4G, with high real-time performance.
GEDB100 is widely used in small-area single-person scenarios such as health care (toilet, bathroom), home security, and whole-house intelligence.
Features
- Fall alarm
- Timeout without action alarm
- Security detection
- Activity trajectory monitoring
- Non-contact monitoring
- Easy Installation
Network Diagram
Sensing range
Top mounting
1) Installation height: 2.2m-3m
2) Installation position: directly above the detection area
3) Installation orientation: horizontally facing directly below
4) Personnel static detection range: height 2.4m, radius below radar 2m;
5) Personnel movement trigger range: height 2.4m, radius under radar 3.5m;
6) Fall warning detection range: height 2.4m, radius under radar 2m.
| Dimensions: | 71x73x27mm |
|---|---|
| Cable size: | 1.2m |
| Net weight: | 70g |
| Host color: | white |
| Shell material: | ABS |
| Detection principle: | 57 GHz ~64GHz microwaveradar |
| Working voltage: | 3.1V~3.5V |
| Working current: | 600mA |
| Installation height: | 2.2m~3.0m |
| Fall detection detection radius: | 2m |
| Detection angle: | horizontal ±60°, pitch ±60° |
| Wireless mode: | 4G |
| Frequency band: | LTE-FDD: B1/B3/B5/B8LTE-TDD:B34/B38/B39/B40/B41 |
| Power supply mode: | external type-c interface powersupply |
| Working temperature: | -20 ~ +85℃ |
| torage temperature: | -40 ~ +85℃ |
