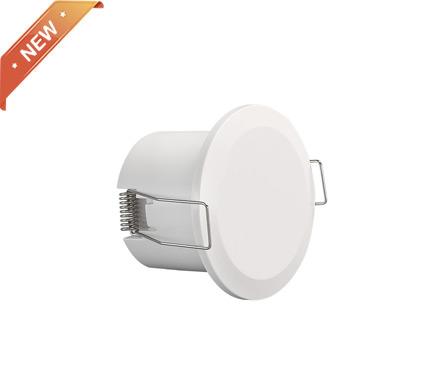

Features
- 24GHz weak current dry contact sensor;
- 12-24V DC input, dry contact/pulse signal output;

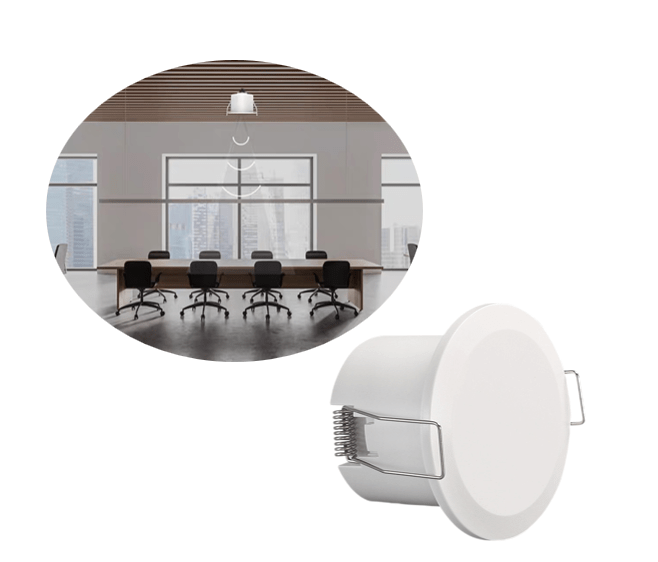

- Small size, embedded independent installation (with a hole diameter of 45mm);
- Adopting human detection technology, supporting movement, micro motion, and presence detection;
- 24G strong anti-interference antenna, which can effectively resist various types of Wi Fi, Bluetooth, etcWireless signal interference.
Function Description​
| Input voltage: | 12-24Vdc |
|---|---|
| Dry contact load: | 40V/1.5A MAX |
| Transmission frequency: | 24-24.25GHz |
| Transmission power: | Light sensitivity threshold: 5lux, 15lux, 30lux, 50lux, 100lux, 150lux, disable |
| 3db beam angle: | 80° (XZ plane) 80° (YZ plane) |
| Mobile sensing distance: | 1.5-5.5m |
| Detection distance: | 1.4m |
| Working temperature: | -30~+60°C |
| Storage temperature: | -35~+85°C |
