GE-S120L RFID Desktop Reader/Writer
Model:Â GE-S120L USB RFID Desktop Reader/Writer
- IMPINJ RAIN RFID E310 chip (QM100 optional)
- Compact & Slim design.
- Cost-effective & stable performance.
- USB Type C plug & play.
- Support HID keyboard output mode.
- Built-in Circular polarization antenna, writing & reading tag easily.
- Delicate and compact design, more friendly with end users.
- IMPINJ RAIN RFID E310 or QM100 chipset offers lower cost & higher performance.
- USB mode / HID keyboard output mode, driver free, online upgrade.
- Support all mandatory ISO18000-6C commands. Widely used in the working station, document management, data issuing, retail cashier, access control, etc.

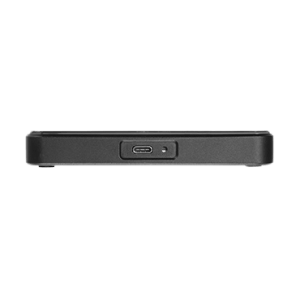

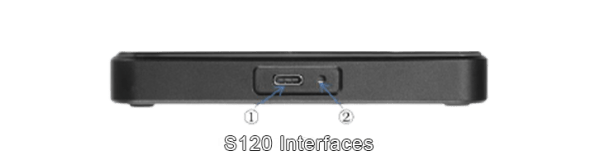

1. USB type C, power supply, and communication interface.
2. Function switch key, to manually switch between normal reader mode and HID keyboard mode.

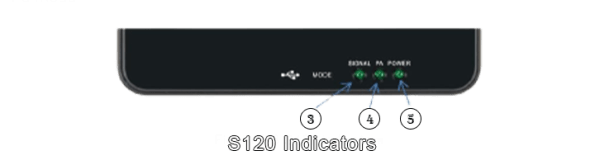

3. SIGNAL– Read Tag Signal Indicator.
4. PA– RF Signal Emitting Indicator.
5. POWER — Power Indicator.
| Physical Characteristics | |
|---|---|
| Dimensions | 170*120*17mm |
| Weight | 0.25kg |
| Housing Material | Die-cast aluminum / ABS cover |
| Visual Status Indicator | Power, Status |
| RFID | |
| Air Protocol | ISO/IEC 18000-6C/EPC C1G2 |
| Frequency | EU: 865-868MHz (ETSI EN 302208) |
| Supportable /optional | Russian / Japan / Korea / Malaysia / Thailand / other customizable |
| Reading ＆ Writing Range | Reading Range: 0-1m Writing Range: 0-20cm |
| (According to Tag & Environment) | |
| Environmental | |
| Operating Temp. | -20 - +70°C |
| Storage Temp. | -40 - +85°C |
| Humidity | 5-90% non-condensing (+25℃) |
