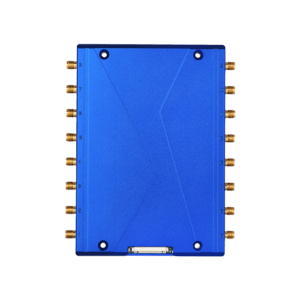

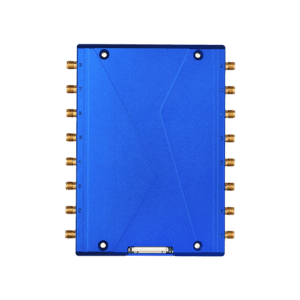

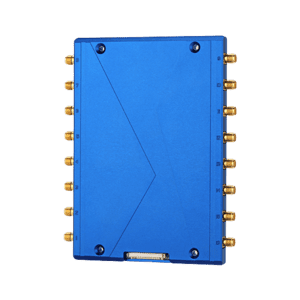

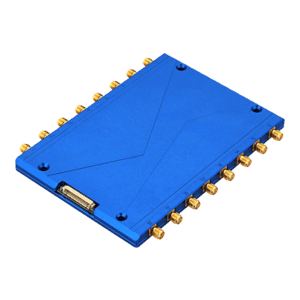

Excellent extensibility, high output power, high sensitivity, low power consumption
| Physical | |
|---|---|
| Dimension | 140.3mm×98.3mm×4.75mm |
| RF Connector | SMA-Female*16 |
| Communication Interface | TTL UART serial |
| Interface Cable | 12P 1.0mm pitch FFC cable |
| Electrical | |
| Operating Voltage | +4.5V～+5.5V |
| Standby Current | < 20mA |
| Operating Current | 5V power supply, 5 1100mA @ +30dBm, working peak current is about 1500mA |
| RFID | |
| Chipset | Impinj Indy R2000/E710 |
| Air Protocal | ISO/IEC 18000-6B，ISO/IEC 18000-6C/EPC C1G2/ C2G2 |
| Frequency | FCC 902MHz~928MHz，GB 920MHz~925MHz，Japan Korea Malaysia Taiwan etc.ETSI 865MHz~868MHz, |
| Max Baud rate | 460800bps |
| Receive Sensitivity | ≤-80dBm |
| Output Power | 0~33dBm(±1dB)adjustable |
| Tag RSSI | supported |
| GPIO | 2 Input , 2Output |
| Environmental | |
| Operating Temperature | 25℃~﹢70℃ |
| Storage Temperature | ﹣45℃~﹢85℃ |
| Operating humidity | ＜95% (﹢25℃) |
