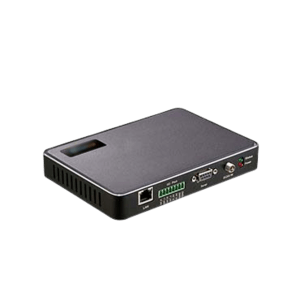

GE-HZ380 Smart Series 8-Port Reader
Model: GE-HL-HZ380 Smart Series 8-Port Reader
- Using Impinj R2000 chip
- Communication port: RJ45、RS232
- Support antenna detection function
- Industrial, easy-to-install I/O port
- Support antenna port detection
- Supports RSSI and tag data filtering
Multi-port fixed UHF RFID reading and writing device, supports ISO18000-6C / 6B two protocols, output power 0~30dBm optional, with high recognition sensitivity, fast speed, strong anti-interference ability. Multi-antennaidentification efficiency, structure anti-collision shockand other characteristics.
| Parameters | |
|---|---|
| SDK&Firmwares | |
| Firmware Upgrade | demo software |
| API | Windows system– .Net / .Net core / C++ / Java Android system - Android Linux system – Java SDK |
| Environment | |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -40℃～+85℃ |
| Humidity | 5%RH～95%RH |
| Protection | IP53 |
| RFID | |
| Protocol | ISO18000-6C/6B |
| Frequency | FCC: 902MHz～928MHz ETSI: 865MHz～868MHz |
| Output Power | 0dBm-30dBm (±1dBm) |
| Channel Bandwidth | ＜200KHz |
| Anti-collision Algorithm | Fixed frequency/frequency hopping optional |
| Operating mode | Supports multi-tag/intensive read and write |
| Physical | |
| Dimension | 170mm×120mm×25mm |
| Weight | 0.5Kg |
| Material | Milling aluminum |
| Indicator light | Power supply, working status |
| Communication | RJ45, RS232 |
| I/O Ports | 2-way optocoupler input, 2-way relay output |
| Power | DC 24V/2.5A |
| Antenna Port | 8 SMA port |
