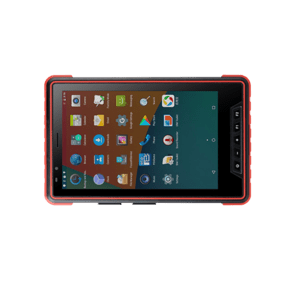

GE-7202G9 RFID Industrial Tablet uses Android 5.1 os，8-inch Multi-touch Capacitive Screen， Camera Front 8 Million, Rear 13 Million Pixels， Use 4G， and Supports HF/RFID。 According to the ergonomic design, the appearance is exquisite, the protection level is high, the operation is comfortable and simple, easy to carry, high flexibility, and suitable for use in various environmental conditions.
| Performance Characteristics | |
|---|---|
| CPU | ARM Cortex-A53 Eight-core Main frequency 1.5GHz |
| Operating System | Android 5.1 |
| Memory | 3GB RAM / 32GB iNand FLASH ROM |
| Display | 8.0”TFT LCD 1280*800Pixel |
| Standard I/O Port | USB2.0 Type C×1 supports OTG |
| Expansion Slot | 1 Micro SD Slot, 2*SIM Slot, 2*PSAM Slot |
| Notification | Vibrator and Indicator LED, Speaker |
| Network Characteristics | |
| WiFi | IEEE 802.11 b/g/n/a 2.4G/5G |
| 4G | TD-LTE, FDD-LTE, WCDMA, EVDO(CDMA2000), GSM, CDMA 4G TDD-LTE :1900/2300/2500/2600MHz(B38/B39/B40/B41) 4G FDD-LTE : 1800/2100/2600 MHz (B1/B3/B7) 3G TD-SCDMA:1900/2100 MHZ (B34/B39) 3G WCDMA:850/900/1900/2100 MHz(B1/B2/B5/B8) 2G GSM:850/900/1800/1900 MHz(B2/B3/B5/B8) CDMA&EVDO: 800 MHz (BC0) |
| Bluetooth | Bluetooth V2.1+EDR/V3.0+HS/4.1 |
| GPS | GPS + AGPS with internal Antenna |
| UHF & HF RFID | |
| Air Protocols | ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2 |
| Reading Distance | 3~10m (According to Tag & Environment) |
| Frequency | USA:902-928MHz (FCC part 15) EU: 865-868MHz (ETSI EN 302 208) CHN:920-925MHz (CMII) |
| Programing Function | match reading / data filter RFID-temperature & humidity sensor data acquisition customizable |
| Antenna | Circular 4dBi |
| RF output | 0-30dBm |
| Physical Characteristics | |
| Dimensions (L x W x H) | 230mm×144.5mm×16.5mm (without accessories) |
| Keyboard | Power key, volume up, volume down, function key F1 & F2 |
| Storage Temp. | -30℃～+65℃ |
| Operating Temp. | -30℃～+55℃ |
| Humidity | 5% RH～95%RH (non-condensing) |
| Drop Spec. | 1.2M Drop to concrete |
| Dust & Water Proof | IP65 |
Related Products
OVERVIEW:
This label is specially designed for anti-liquid applications, such as water, drinks, alcohol, cosmetics, perfume, blood bags, etc. It is compliant with the EPC C1G2 (ISO18000-6C) standard.
This UHF on-metal label can be applied on any metallic items.
OVERVIEW:
RFID LED Lighting Tag is an passive RFID tag with LED light, which supports UHF (ISO 18000-6C) protocol. It can send LED lighting instructions through UHF equipment to light up the specified LED tag to achieve fast items search function. It is widely used in managing books and archives search, cables and wires search, packages quick search etc.
OVERVIEW:
RFID tags embedded in clothing can realize quick inventory, and with the anti-theft function of EAS, it can realize the highest efficiency management and operation of goods in retail terminals.
OVERVIEW:

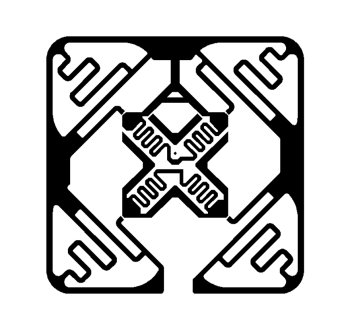

This antenna is designed for logistics applications. It supports omnidirectional reading, and its high efficiency and excellent performance make it widely used in warehouse management, logistics and transportation fields etc.
OVERVIEW:

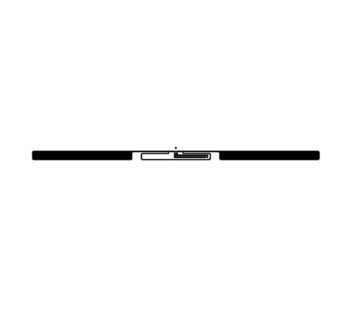

This jewelry tag features an RFID chip on the tail of the tag. When the tail is cut off, the tag cannot be identified and can prevent theft.
OVERVIEW:

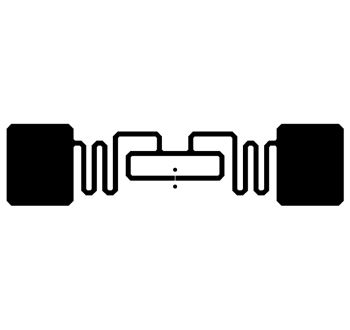

Windshield tags are adhesive tags that are applied to the inside of a vehicle’s windshield, providing a read range of approximately 20 feet or more. Easy vehicle access control and car park entry.
OVERVIEW:

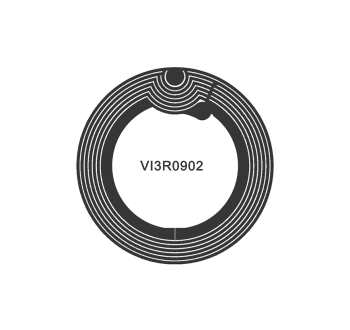

This circle antenna represents an excellent option whichissuitable for library, gaming and toys, anti-counterfeiting, anyother NFC applications, etc.
OVERVIEW:

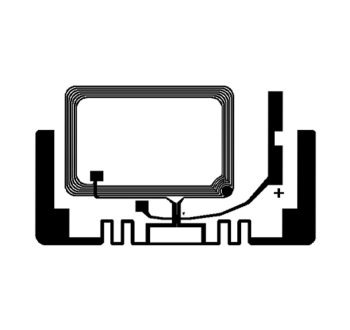

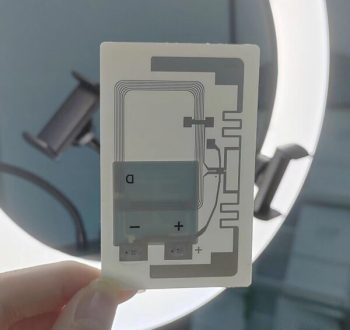

RFID temperature tags can be employed in vaccine, pharmaceutical, and fresh cold chains, as well as intelligent parcel management, to monitor and control temperature, ensuring product quality and safety throughout the cold chain.
