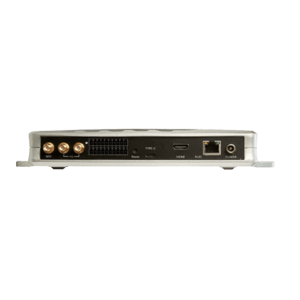

GE-HH340 IoT Android Smart RFID Reader
Model: GE-HH340 IoT Android Smart RFID Reader
- Impinj RAIN RFID E710 chip ( Indy R2000 optional)
- Open development environment based on Android OS
- Supports MQTT to send data to cloud servers in real-time
- Supports HTTP POST communication to send tag data directly to a web URL
- It supports sending data to the database directly
- RJ45, RS485, Wiegand, USB, Bluetooth, WiFi, 4G
- Support antenna port detection, online updates
- Supports RSSI and tag data filtering
GE-HH340 is a 4-port Android-based fixed RFID reader integrated with the Impinj R2000/E710 RFID chip. This long-range UHF RFID reader supports RJ45, RS485, Wiegand, USB, Bluetooth, WIFI, 4G, etc. as well as supports MQTT to provide real-time and reliable messaging services. It also supports sending data directly to the database.
| System | |
|---|---|
| Processor | MT6765, Octa Core 2.3Ghz |
| Memory | ROM 64GB； RAM 4GB |
| Operation System | Android 9.0 (open for developers) |
| Firmware upgrade | Demo software/Web page |
| API | Windows system– .Net / .Net core / C++ / Java SDK Android system- Java Linux system – Java, SDK |
| Environment | |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -40℃～+85℃ |
| Humidity | 5%RH～95%RH(no condensation) |
| Protection level | IP5X, if outdoor use, support to add case |
| Physical | |
| Dimension | 241mm×132mm×36mm |
| Weight | 1.0Kg |
| Material | Die-cast Aluminum |
| Status indication | Power, working status, antenna port, WiFi, 4G, Bluetooth |
| Power consumption | 25W |
| Communication | RJ45, RS485, OTG, Wiegand WiFi: 802.11 a/b/g/n/ac 4G: LTE-FDD (CAT-7)/LTE-TDD (CAT-7)/WCDMA/TD-SCDMA/ Bluetooth: BT v2.1+EDR, 3.0+HS, v4.1+HSEVDO/CDMA/GSM |
| I/O ports | 4 optocoupler input (DC 0～4V), 4 relay output |
| Power Supply | DC 24V/2.5A (DC 9V～30V，60W) or POE(IEEE 802.3 af/at/bt) |
| Display | HDMI, 720P/1080P |
| Antenna port | 4 RP-TNC |
| RFID | |
| Protocol | ISO/IEC 18000-6B，6C/EPC C1Gen2、C2Gen2，GB/T 29768-2013, GJB 7377.1 |
| Frequency | ETSI：865MHz～868MHz CN / EAC / ANATEL / TELEC / BIS / NBTC / KC and so on standards optional |
| Ouput Power | 0dBm～35dBm (±1dBm) (4 antennas 0-12dbi optional) |
| Channel Occupied Bandwidth | ＜200KHz |
| Anti-collision | Supports multi-tag/dense reading |
| Operating mode | Fixed frequency/frequency hopping optional |
