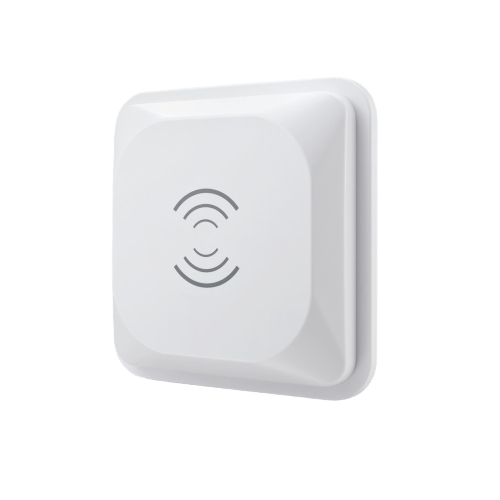

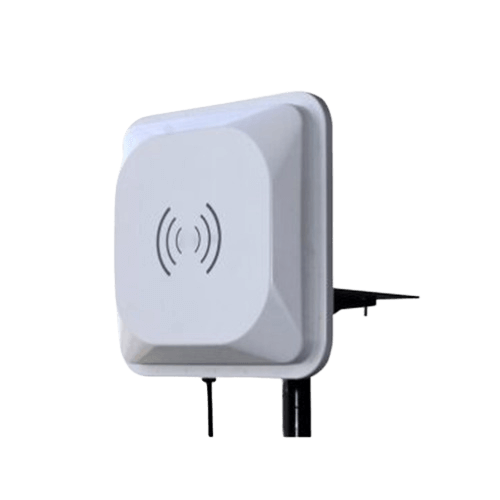

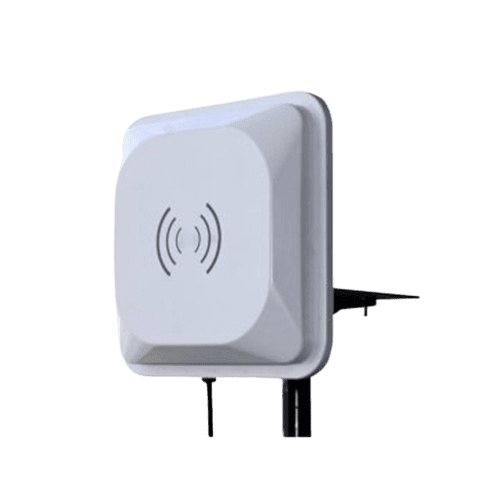

GE- HL 9dBi UHF RFID Antenna
Model: GE- HL-CL7205A 9dBi Circular Polarization UHF RFID Antenna
- Polarization: circular polarization
- High gain：9dbi
- Typical VSWR：≤1.5:1
- IP rate： IP65
- Low profile with high gain， reading distance range up to 15m.
- Maximum efficiency and performance across the entire frequency band.
- Seamlessly compatible with different brand RFID readers.
- Widely used in parking, warehouse, forklift, production line, container yard, luggage, carousel, file cabinet, smart shelf, etc.
| Physical Specifications | |
|---|---|
| Weight: | 1.6kg |
| Size: | 290mm×290mm×55mm |
| Material: | ABS+ Aluminum |
| Connector type / position: | TNC female on the back |
| Sealing: | IP65 |
| Operating Temperature: | -30℃~+ 75℃ |
| Storage Temperature: | -40℃~+ 85℃ |
| Electrical Specifications | |
| Frequency Range: | 865~868 Mhz |
| Typical VSWR: | ≤1.3:1 |
| Far-Field Gain: | > 9dBi |
| H Beamwidth: | 70° |
| E Beamwidth: | 70° |
| Polarization: | Circular |
| Front to back ratio: | 20db |
| Nominal Impedance: | 50 Ω |
