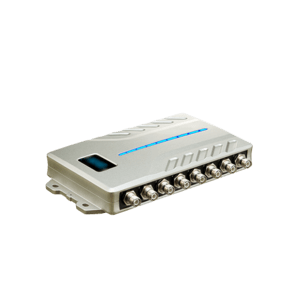

GE-HH380 IoT 8-port Android RFID Reader
Model: GE-HH380 IoT 8-port Android RFID Reader
- Using Impinj R2000/E710 chip
- Open development environment based on Android OS
- MT6765 processor, octa-core 2.3GHz, 64GB ROM+4GB RAM
- Supports MQTT to send data to the Cloud server
- Support HTTP POST to send tag data to a web URL directly
- Supports sending data to the database directly
- RJ45, RS485, Wiegand, USB, Bluetooth, WiFi, 4G
- Support antenna port detection, online updates
- Supports RSSI and tag data filtering
Using Impinj E710 chip platform Open development environment based on the Android operating system Supports MQTT to provide real-time and reliable messaging services for connecting to cloud servers Supports HTTP POST communication to send tag data directly to a web URL Supports sending label data directly to the specified database Rich communication interface types: RJ45, RS485, Wiegand, USB, Bluetooth, WiFi, 4G
| System | |
|---|---|
| Processor | MT6765, Octa Core 2.3Ghz |
| Operation System | Android 9.0 |
| Firmware upgrade | Demo software/Web page |
| Special function | Automatic card reading Data cache Data filtering Can support RF/EM temperature sensor chip Support MQTT Support HTTP POST Support data transfer to specified database NTP support |
| API | Windows system– .Net / .Net core / C++ / Java SDK Android system- Java Linux system – Java, SDK |
| Memory | ROM 64GBï¼› RAM 4GB |
| Physical | |
| Dimension | 241mm×132mm×36mm |
| Weight | 1.0Kg |
| Material | Die-cast Aluminum |
| Status indication | Power, working status, antenna port, WiFi, 4G, Bluetooth |
| Power consumption | 25W |
| Communication | RJ45, RS485, OTG, Wiegand WiFi: 802.11 a/b/g/n/ac 4G: LTE-FDD (CAT-7)/LTE-TDD (CAT-7)/WCDMA/TD-SCDMA V/EVDO/CDMA/GSM |
| I/O ports | 4 optocoupler input (DC 0～4V), 4 relay output |
| Power Supply | DC 24V/2.5A (DC 9V～30V，60W) or POE(IEEE 802.3 af/at/bt) |
| Display | HDMI， 720P/1080P |
| Antenna port | 8 RP-TNC |
| RFID | |
| Air Protocols | ISO/IEC18000-6B, 6C / EPC C1Gen2 C2GEN2 optional |
| Frequency | USA: 958 MHz-968MHz (FCC part 15) CN: 958-968MHz (CMIIT) Russian / Brazil / Korea / Malaysia / Thailand / other customizable |
| Output Power | 0dBm-35dBm (±1dBm) adjustable |
| Channel bandwidth | ＜200KHz |
| Anti-collision | Support multi-tag / intensive inventory |
| Work Mode | Fixed/hop frequency optional |
| Environment | |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -40℃～+85℃ |
| Humidity | 5%RH～95%RH(no condensation) |
| Protection level | IP53 |
