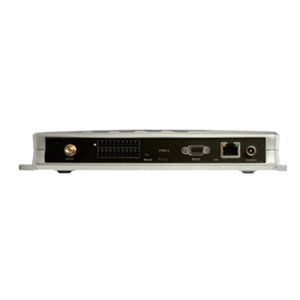

GE-HF380 8-Port Fixed Reader
Model: GE-HL-HF380 8-Port Fixed Reader
- Impinj RAIN RFID E710 chip (Indy R2000 optional)
- Processor AT91SAM9G25 clocked at 400MHz
- Support remote configuration via web software
- Built-in Linux system, data cache/white list supportable
- RJ-45/RS-232/RS-485/USB/Wiegand ports supported
- PoE,PoE+ IEEE802.3bt (supports max 35db)
- Scalable Bluetooth, WiFi wireless function
- Supports RSSI and tag data filtering
- Powered by Impinj RAIN RFID E710 chip for maximum tag detection performance.
- Android 9.0 OS-based open development environment
- Support MQTT provides real-time, reliable messaging services for connecting cloud servers
- Support HTTP POST communication to send the tag data to the web URL directly
- Support to send the tag data to the specified database directly
- Kinds of communication interfaces: RJ45, RS485, Wiegand, USB, Wi-Fi, Bluetooth, 4G
- Industrial, installation-friendly I/O connector,
- Support RSSI, speed filters, antenna detection, online update
- Real useful PoE (max 35dbi power output) supportable
| System | |
|---|---|
| Processor | ARM 9，400MHz |
| Memory | Flash 128MB，SDRAM 32MB |
| Operation System | Linux 2.6 |
| Firmware upgrade | Demo software/remote upgrade |
| SDK | Windows system– .Net / .Net core / C++ / Java SDK Android system- Java Linux system – Java SDK |
| Environment | |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -40℃～+85℃ |
| Humidity | 5%RH～95%RH (no condensation) |
| Protection Level | IP5X Add waterproof case for outdoor use |
| RFID | |
| Protocol | ISO/IEC 18000-6B，6C/EPC C1Gen2、C2Gen2，GB/T 29768-2013, GJB 7377.1 |
| Frequency | CMII：840MHz～845MHz ETSI：865MHz～868MHz EAC/ANATEL/KC/SIRIM/NBITC optional &customizable |
| Output Power | 0dBm～35dBm（±1dBm） |
| Read Range | 0m～30m (Related to transmit power, antenna type, tag type and application environment) |
| Channel Bandwidth | ＜200KHz |
| Special Function | Automatic reading/whitelisting; Breakpoint resume/data filter; Custom PLC/Modbus compatible data Read RF/EM temperature RFID sensorformat |
| Operating mode | Supports multi-tag/intensive read and write |
| Physical | |
| Dimension | 241mm×132mm×36mm |
| Weight | 1.2Kgs G.W: 1.5Kgs |
| Material | Die-cast Aluminum |
| Status indication | Power, Status, Antenna Port Indicators |
| Power consumption | 25W |
| Communication Interface | RJ45, RS232, RS485, USB Host&Client, Wiegand |
| Optional | WiFi, Bluetooth |
| I/O interface | 4 optocoupler input, 4 relay output |
| Input Power | DC 24V/2.5A（DC 9V～30V，60W） |
| Antenna Port | 8 RP-TNC antenna ports |
