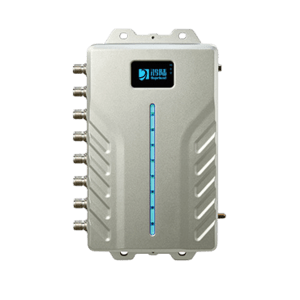

GE-HF340 4 Ports UHF RFID Reader
Model:GE-HL-HF340 4 Ports UHF RFID Reader
- Adopts Impinj R2000/E710 chip
- Processor AT91SAM9G25 clocked at 400MHz
- Support remote configuration via web software
- Built-in Linux system, data cache/white list supportable
- RJ-45/RS-232/RS-485/USB/Wiegand ports supported
- POE IEEE802.3bt (supports maximum power operation)
- Extensible Bluetooth, WiFi wireless transmission function
- Supports RSSI and tag data filtering
Powered by Impinj R2000 chipset / E710 RAIN RFID reader chip for maximum tag detection performance.Super long reading distance up to 30 meters and 600-900 times each second. Kinds of communication interfaces: RJ45, RS485, Wiegand, USB, Wireless Wi-Fi, Bluetooth, 4G,PoE optional Support RSSI, antenna detection, online update
| System | |
|---|---|
| Processor | ARM 9，400MHz |
| Memory | Flash 128MB，SDRAM 32MB |
| Operation System | Linux 2.6 |
| Firmware upgrade | Demo software/remote upgrade |
| SDK | Windows system– .Net / .Net core / C++ / Java SDK Android system- Java Linux system – Java SDK |
| Special function | Automatic card reading/whitelisting Breakpoint resuming/data filtering Custom output PLC/Modbus compatible data format Can support RF/EM temperature sensor chip |
| Environment | |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -40℃～+85℃ |
| Humidity | 5%RH～95%RH (no condensation) |
| RFID | |
| Protocol | ISO/IEC 18000-6B，6C/EPC C1Gen2、C2Gen2，GB/T 29768-2013, GJB 7377.1 |
| Frequency | ETSI：865MHz～868MHz |
| Output Power | 0dBm～35dBm (±1dBm adjustable) |
| Read Range | 0m～20m (Related to transmit power, antenna type, tag type and application environment) |
| Write Range | 0m～10m (Related to transmit power, antenna type, tag type and application environment) |
| Channel Bandwidth | ＜200KHz |
| Anti-collision Algorithm | Fixed frequency/frequency hopping optional |
| Operating mode | Supports multi-tag/intensive read and write |
| Physical | |
| Dimension | 241mm×132mm×36mm |
| Weight | 1.2Kg |
| Material | Die-cast Aluminum |
| Status indication | Power, Status, Antenna Port Indicators |
| Power consumption | 25W |
| Communication Interface | RJ45，RS232，RS485，USB Host&Client，Wiegand |
| Optional | WiFi, Bluetooth |
| I/O interface | 4 optocoupler input, 4 relay output |
| Input Power | DC 24V/2.5A（DC 9V～30V，60W） |
| Antenna Port | 4 RP-TNC antenna ports G.W.:1Kg |
