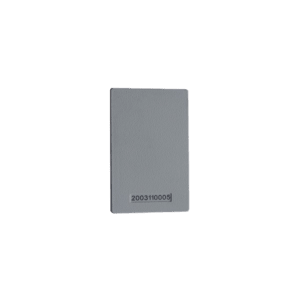

GE-CI-RT208 LF Wake up Active RFID Tag
Model: GE-CI-RT208 LF Wake up Active RFID Tag
- ISM 2.4-2.48Ghz Working Frequency, 125khz Wake Up Signal
- 1-6m Waking Up Radius, Idea Work as RFID Locator Tag
- Unique Wake Up Algorithm to Assure Accurate Tag Waking Up
- 3D 125Khz Antenna Design to Assure Three-Dimensional Waking Up Signal
- Flexible Active+ LF Wake Up Mode
Ci-RT208 LF Wake up tag is woken by 125KHz LF signal and sends together LF activator address and 2.45GHz frequency tag ID to reader. It is suitable for corporation/school personnel management, vehicle auto checking & identification, parking lot management etc.
| TECHNICAL PARAMETER | |
|---|---|
| Working Frequency | 865~868 Mhz |
| Modulation | GFSK |
| Waking Up Signal | 125KHz |
| Waking Up Modulation | OOK |
| Rf Power | -20-+0dBm( default 0dBm) |
| Tag Id | 4 byte |
| Address Id | 2 byte |
| Working Mode | LF wake up or LF wake up+active |
| Id Waking Up Time | <30mS, 40ms to 60s adjustable |
| Battery Life | Time 4-5 year |
| Battery Low Alarm | Yes |
| Waking Up Distance | 4-6m (adjustable) |
| Reading Distance | 0-100m |
| Dimension | 88 *57 *5mm |
| Weight | 30g |
| Material | ABS+PC |
| Working Temperature | -20°C~ +60°C |
| Storage Temperature | -25°C~ +65°C |
| Humidity | 5% ~ 95% |
| Ip Rating | IP67 |
