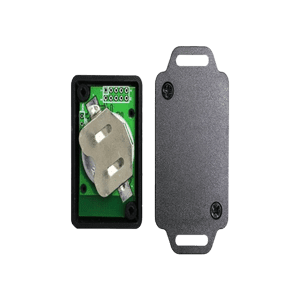

Ci-RT207 active tag operates in the 2.4Ghz ISM band, it is designed to asset surface mounting, can be attached on asset surface easily, it is mainly used for indoor assets management , hopsital equipments tracking and other applications.
| TECHNICAL PARAMETER | |
|---|---|
| Working Frequency | ISM 2.4-2.48GHz |
| Modulation | GFSK |
| Rf Power | -13~+7dBm (default 0dBm) |
| Communication Speed | 1Mbps |
| Tag Id | 4 byte |
| Working Mode | Active |
| Signal Interval | 800ms (customizable from 100ms-60s) |
| Battery Low Alarm | Yes |
| Battery Life Time | 2 years, battery replaceable |
| Reading Distance | 0-120m |
| Installation | Sticker/ Bolt |
| Dimension | 52 *36 *15mm |
| Weight | 25g |
| Material | ABS+PC |
| Working Temperature | -20°C~ +60°C |
| Storage Temperature | -25°C~ +65°C |
| Humidity | 5% ~ 95% |
| Ip Rating | IP65 |
