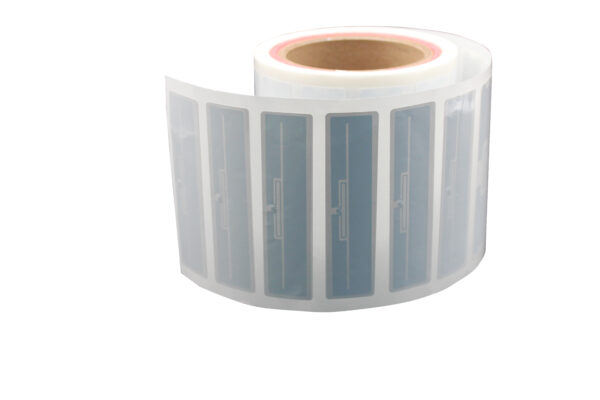

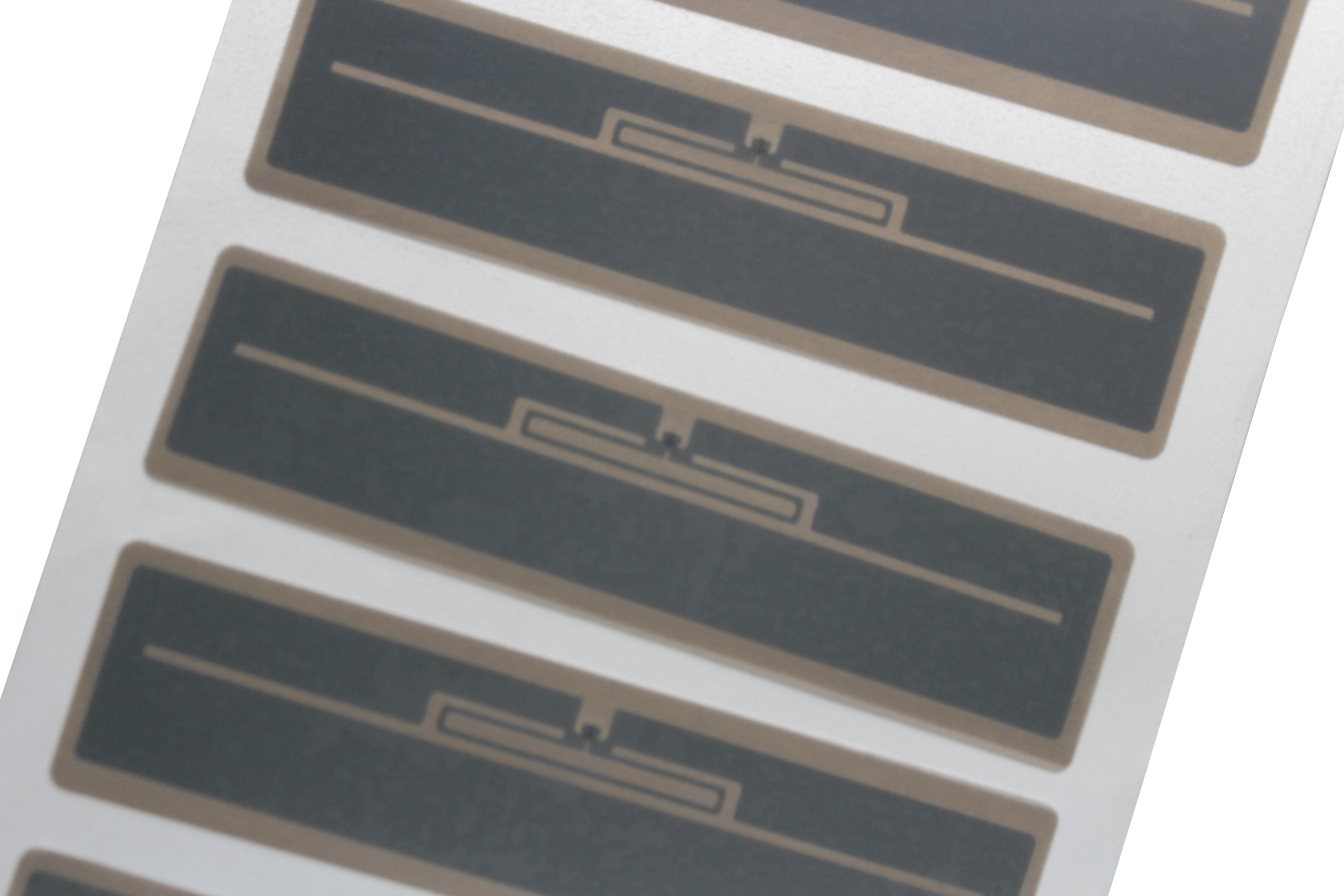

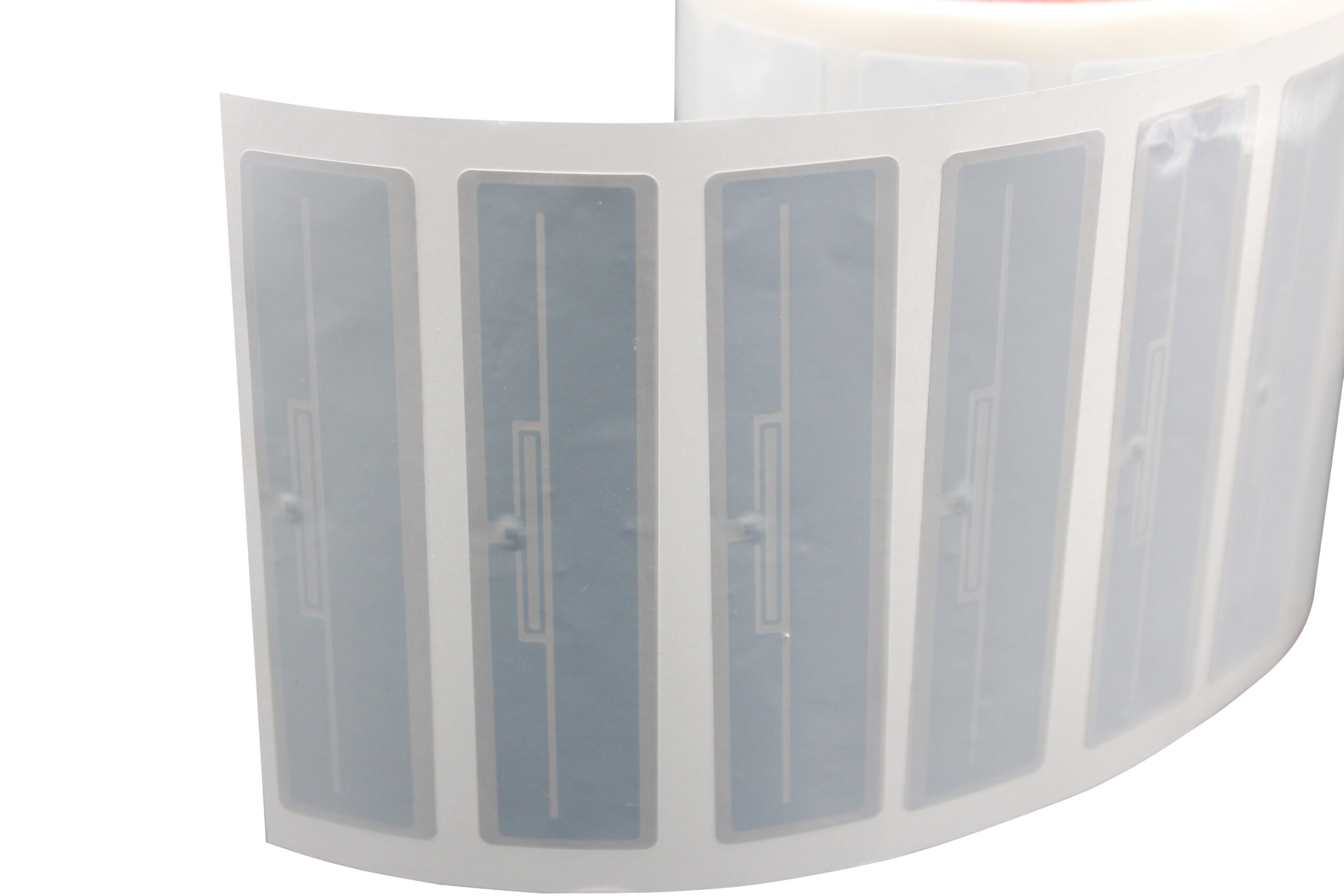

UHF Passive RFID Temperature Sensor Logger AS3213T
This temperature sensor logger is specifically designed for applications such as Condition monitoring, Supply chain management, tracking and tracing, Cold chain monitoring . It is passive and does not require a battery to power the temperature sensor for real-time temperature data collection.
It is based on the AS3213T chip from Asygn, which has an integrated temperature sensor. When using the internal sensor mode, the tag has a sensitivity of -13dBm. It is compatible with all standard UHF RFID readers and operates within the frequency range of 860MHz – 960MHz.
This temperature sensor logger contains a miniature sensor and an RFID chip. When the tag is within the effective range of an RFID reader, the RF signal emitted by the reader activates the tag, which immediately sends the current temperature data back to the reader. Users can view the temperature records in real-time through dedicated software and respond promptly to any temperature anomalies.
| Product | GE7020 |
|---|---|

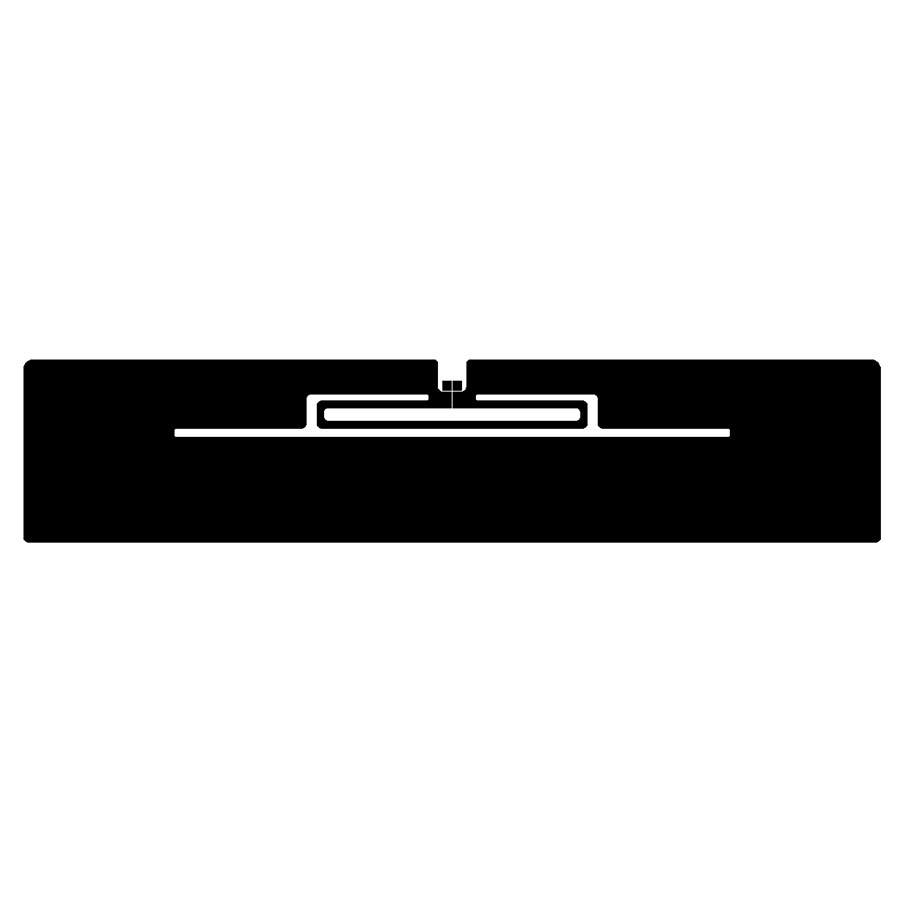

| ANTENNA SIZE(mm) | 65*15mm |
| Chip | ImpinJ MR6-P |
| EPC Memory | 128Bits |
| TID Memory | 96Bits |
| IC Life | 100,000 programing cycles/50 years data retention |
