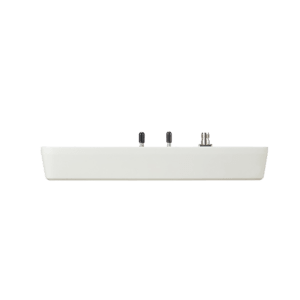

GE-A0920 9dBi Circular Polarization antenna
Model: GE-A0920 9dBi Circular Polarization antenna
- Gain: 9dbi.
- Wide operating frequency：865~868 Mhz
- Polarization: circular polarization.
- Polarization: circular polarization
RFID Reader A0920 is a highly protected circularly polarized antenna suitable for outdoor scenarios. This is a high-end UHF RFID antenna with an original appearance. Featured in IP66 rugged engineering plastic housing, this RFID reader antenna can operate efficiently even in harsh environments.
| Physical Specifications | |
|---|---|
| Weight: | 1.23kg |
| Dimensions: | 276mm X 276mm X 41mm |
| Housing material: | Engineering plastic PC, aluminum |
| Connector type / position: | TNC female on the back |
| Operating Temperature: | -40℃~+ 85℃ |
| Storage Temperature: | -40℃~+ 85℃ |
| Electrical Specifications | |
| Frequency Range | 865~868 Mhz |
| Typical VSWR | ≤1.5:1 |
| Far-Field Gain | 9dBi |
| H Beamwidth | 70° |
| E Beamwidth | 70° |
| Polarization | Circular |
| Nominal Impedance | 50 Ω |
