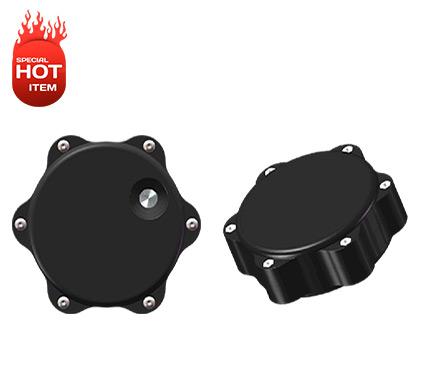

GEDF703 Smart Waste Bin Sensor
DF703 ultrasonic waste bin sensor can be used to detect the full-empty/ fire / tipping status of waste bin. Maximum measuring distance is up to 4 meters.

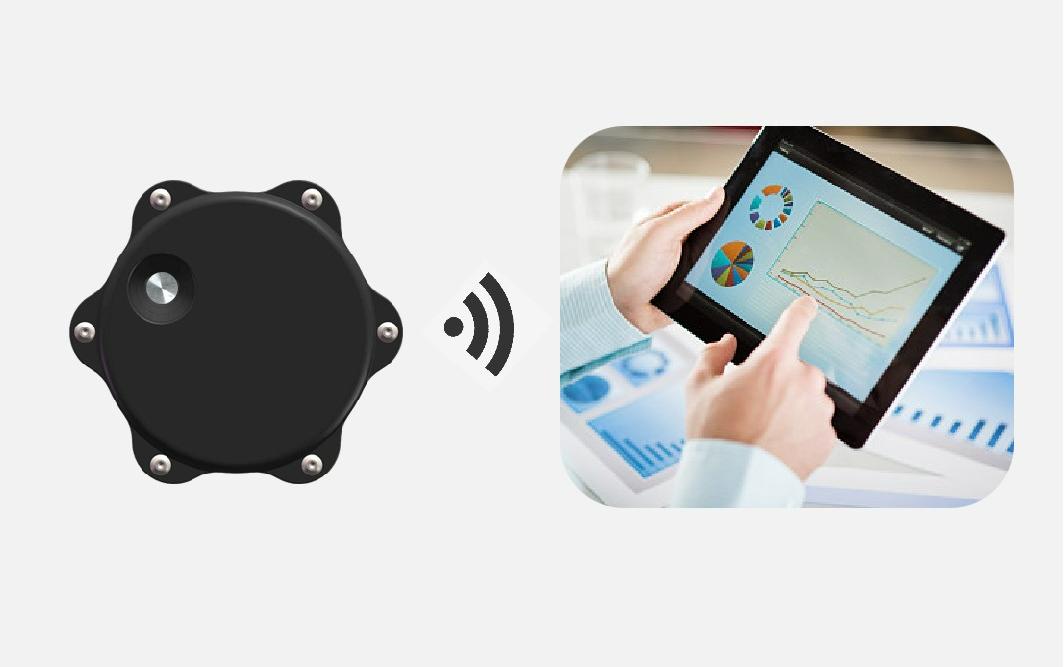

Through built-in wireless module (NB-IoT, LoaWAN, Sigfox, 4G, Cat-M), users can monitor the waste bin remotely.
Based on low power consumption, battery can work for more than 8 years at 4 times report per day.
Features
- Ultrasonic Technology
- Remote Monitoring
- IP68 Waterproof
- LPWAN Connectivity
- Low Power Consumption
- Easy Installation & Integration
Network Diagram
Sensor →Base Station/Gateway→Cloud Server→Application
SAAS
Installation
During the mounting, tool is necessary to drill hole and fasten the screw. Make sure the sensor is as vertical as possible. If the space for installation it too small, please try to remove the top cover from the trash bin body and fasten it again. Then restore the top cover with the trash bin body.
| Dimension: | 119*119*40mm |
|---|---|
| Net Weight: | 450g |
| Color: | Black |
| Shell Material: | ABS |
| Principle: | ultrasonic@40Khz |
| Detection Range: | 4 meters |
| Blind Area: | 15cm |
| Accuracy of height: | 3cm |
| Accuracy of temperature: | 2℃ |
| Accuracy of angle: | 2° (optional) |
| Operating Temperature: | -20 ~ +70℃ |
| Storage Temperature: | -40 ~ +85℃ |
| Protection Level: | IP68 |
| Battery Lifetime: | More than 8 years at 4 hours report interval. |
| Internal Battery: | Lithium Battery 8500mAh @ 3.6V |
| Wireless: | NB-IoT/LoRaWAN/Sigfox/4G/Multi-tech(NB-IoT&Cat-M) NB-IoT: B3/B5/B8/B20/B28, etc LoRaWAN: CN470/EU868/US915/AS923/RU868/IN865/KR920Mhz Sigfox: RCZ1/RCZ2/RCZ3/RCZ4 4G: LTE-TDD:B34/B38/B39/B40/B41, LTE-FDD:B1/B3/B5/B8 Multi-tech(NB-IoT+Cat-M) Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19 /B20/B25/B26/B27/B28/B31/B66//B72/B73/B85 NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B26/B28/B31/B66/B71/B72/B73/B85 |
