RFID Temperature Sensor Logger Tag
OVERVIEW:
RFID temperature tags can be employed in vaccine, pharmaceutical, and fresh cold chains, as well as intelligent parcel management, to monitor and control temperature, ensuring product quality and safety throughout the cold chain.
RFID Temperature Label Size

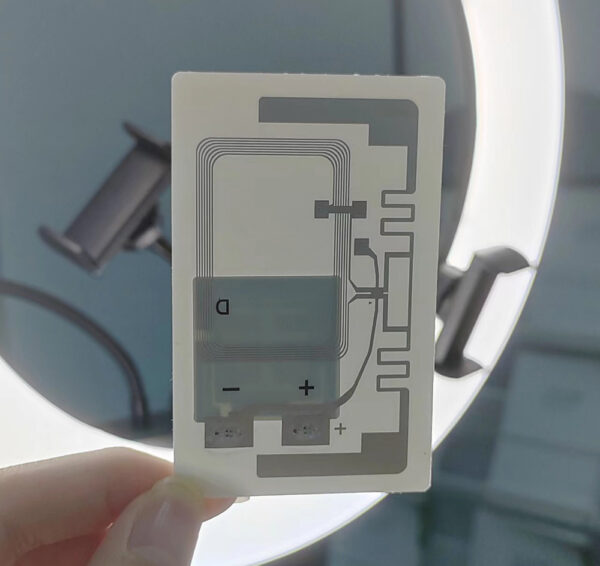

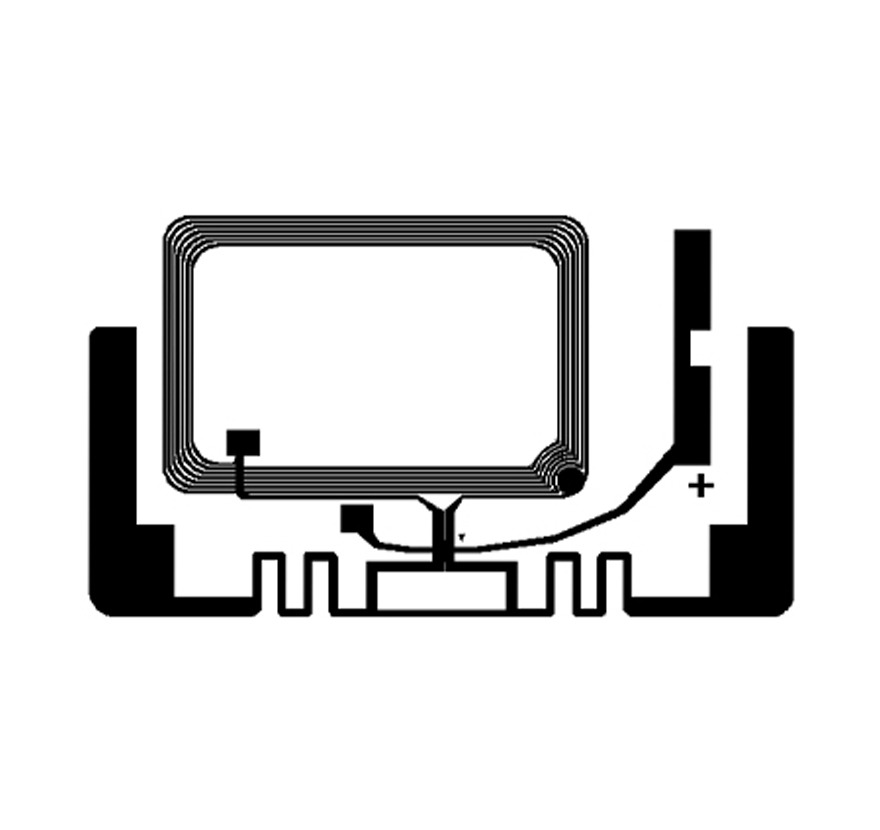

RFID Temperature Tag Structural Representation
About the RFID temperature tag
RFID temperature tag is a low cost,semi-passive NFC&UHF dual RFID temperature logger which supports timing temperature measurement data storage.There is a paper battery with the tag,in which data can be stored offline to monitor temperature through out the process.This tag is ideal for monitoring those temperature sensitive products like fresh foods and pharmaceuticals during transportation and storage.
RFID temperature tags play a vital role in the vaccine cold chain by ensuring temperature monitoring and control. These tags can continuously monitor and record the temperature of vaccines during transportation and storage, providing real-time data for analysis and ensuring that vaccines are stored at the appropriate temperature. This technology enables quick detection and correction of any temperature fluctuations or deviations, ensuring that the efficacy and safety of vaccines are maintained throughout the cold chain.
1. Features and advantage
- Built-in paper battery, conforms to airfreight standards
- Can store temperature data offline
- Monitor temperature through out the process
- Built-in HF (NFC) and UHF chips.
- Temperature data can be read by NFC cell phone
- Thickness is only 0.7mm
2. Available ranges
- Fresh food
- Frozen food or goods
- Pharmaceuticals, including vaccines, blood bags , etc.
- Other cold-chain items
- Smart Package
- Logistics Location
Product Specifications:
| Product | UHF & NFC Dual Temperature Tags |
|---|---|
| ANTENNA SIZE(mm) | 77*44mm |
| Chip | FM13DT160 |
| International Standard | ISO14443A; EPC C1G2(ISO18000-6C) |
| EPC Memory | 160k bits |
| Delivery Format | PP Synthetic paper Label |
| Quantity / Reel | 1000±2Pcs/Reel |
