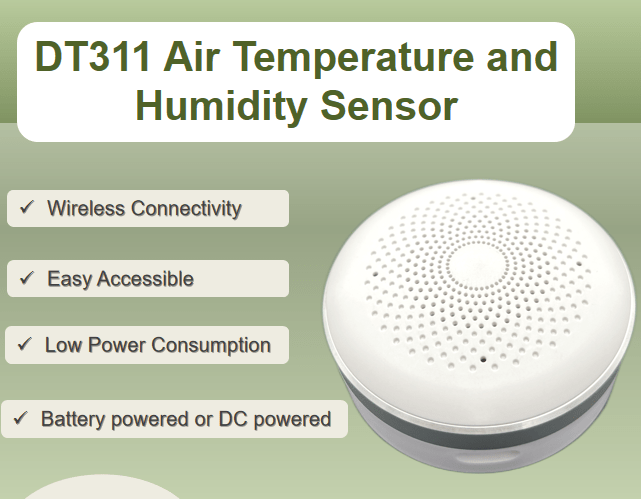

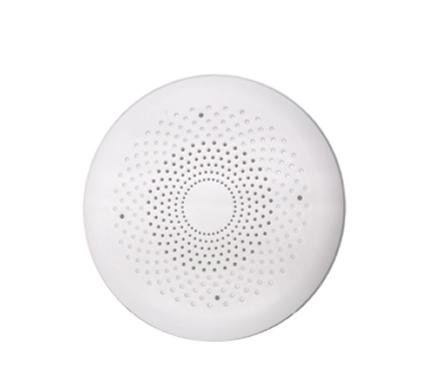

GEDT311 Air Temperature and Humidity Sensor
GEDT311 is an advanced, configurable indoor air temperature and humidity sensor which is suitable for home, industrial room, greenhouse, cabinets and other occasions.
Users can monitor air temperature and humidity remotely through built-in wireless module NB-IoT, LoRaWAN, Sigfox.
Features
- LED indicator
- Wireless Connectivity
- Remote Monitoring
- Open protocol
- Low power consumption​
- Battery powered or DC powered
Network Diagram
Sensor →Base Station/Gateway→Cloud Server→Application
SAAS
Installation
| Dimension : | Main body: 100*42*20mm; Small body: 100*16*20mm |
|---|---|
| Measuring range : | Temperature, -30~+85℃ (Accuracy:±0.3℃); Humidity, 0~90% (Accuracy: ±2%RH) |
| Power Consumption : | Upload ≤500mA; Detection≤50mA; Sleep≤10uA; |
| Internal Battery : | 1000mAh@ 3.7V Lithium Battery, Life time 10 days. |
| Recharge Interface : | Micro-USB 500mA@5V |
| Recharge LED : | Red: not full battery; Blue: Full battery. |
| Alarm LED : | Program running, Red on; High temperature, Green flash; Low temperature, Green on; High humidity, Blue flash; Low humidity, Blue on. |
| Wireless : | NB-IoT/LoRaWAN/Sigfox |
| Frequency : | B-IoT : B3/B5/B8/B20/B28 LoRaWAN : CN470/EU868/AU915 /US915/AS923 etc Sigfox : RCZ1/RCZ2/RCZ3/RCZ4 |
