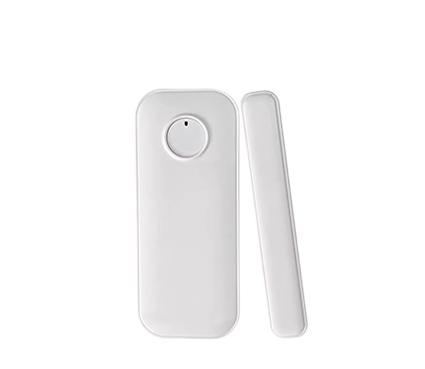

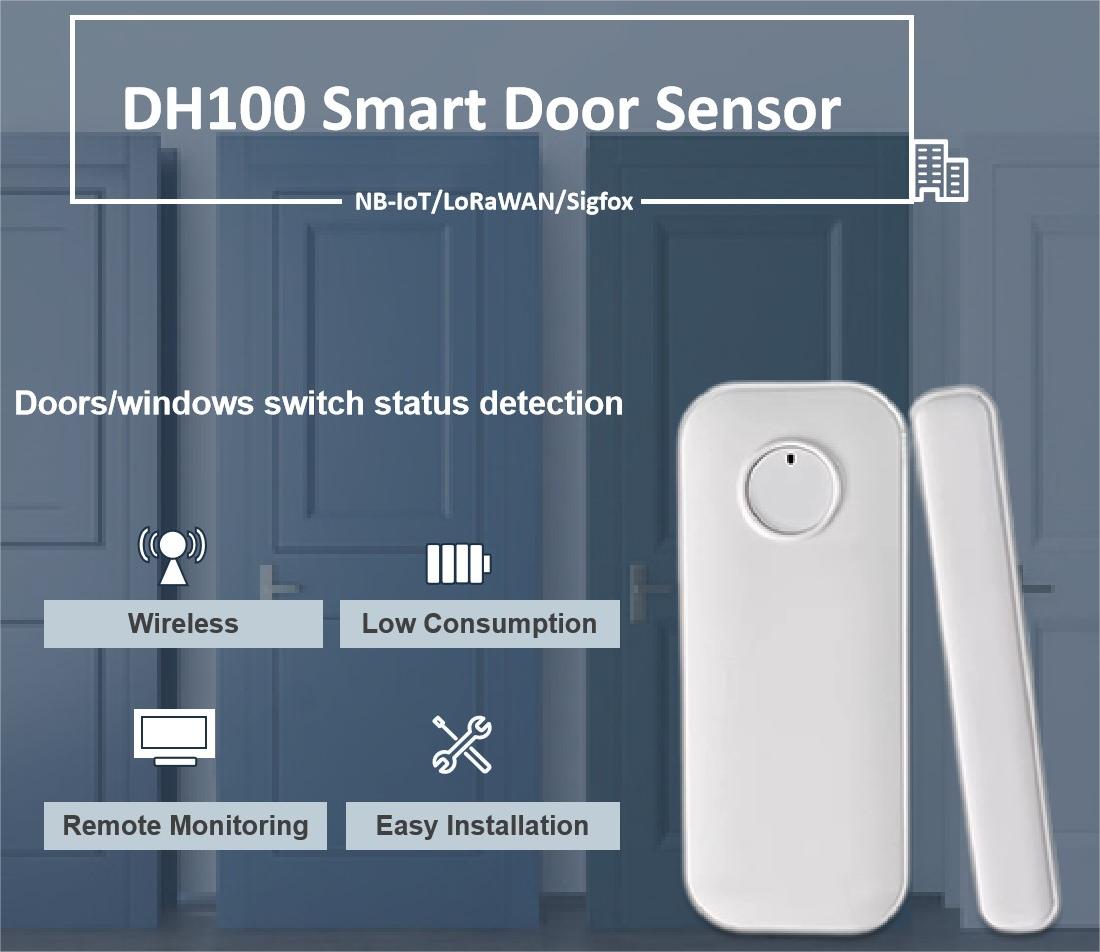

 GEDH100 Smart Door Sensor
GEDH100 smart door magnetic detector can be used to detect the switch status of doors and windows; When the doors or windows are opened, the information will be immediately transmitted to the cloud server through the built-in low power wireless module. Users can observe status information remotely.
Based on low power consumption algorithm, the internal battery can work for more than 2 years (report 4 times a day).
Features
- Wireless Connectivity
- Low power consumption
- Open protocol
- Battery Powered
- Easy Installation
- Easily accessible
Network Diagram
When the device detects the switch status of doors or windows,
it sends a frame to the base station, then base station forward to cloud server, then to application. Finally user can monitor the status remotely.
SAAS
Users can check data CNDINGTEK’s software application or their own software applications.
| Size: | Main body: 100*42*20mm; Small body: 100*16*20mm |
|---|---|
| Weight: | 62g |
| Shell material: | ABS |
| Color: | White |
| Theory: | Magnetic Switch |
| Wireless Connectivity: | NB-IoT/LoRaWAN/Sigfox/4G |
| Frequency: | NB-IoT: B3/B5/B8/B20/B28 LoRaWAN: CN470/EU868/AU915 /US915/AS923 etc Sigfox: RCZ1/RCZ2/RCZ3/RCZ4 |
| Power Supply: | 2 pcs AAA battery (not included by default) |
| Operation temperature : | -20 ~+70℃ |
| Storage temperature : | -40 ~+85℃ |
| Protocol : | TCP/MQTT |
