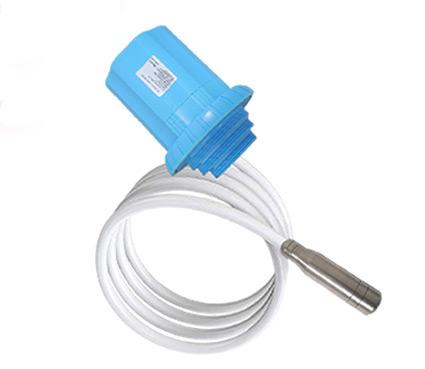

GEDF556 Pressure Liquid Level Sensor
GEDF556 is a pressure-based liquid level sensor, with wireless transmission module and battery.
With a submerged pressure transducer, GEDF556 can acheive 0.5% accuracy of the liquid height. The standard measurement range is up to 2.5m. For other cable length, please contact our sales.
It is integrated with wireless module like NB-IoT, LoRaWAN, Sigfox, CAT-M, GPRS, 4G-LTE and etc. Data is uploaded to cloud server in protocol TCP, MQTT, LoRaWAN or other customized protocol. Widely applicable for liquid tanks, sewage, industrial water, pool, rivers and etc.
Features
- Pressure-based
- Liquid Level Detection
- Wireless Transmission
- Remote Monitoring
- Low Power Consumption
- IP67 Waterproof
- Easy Installation
Network Diagram
SAAS
Users can check data Dingtek’s web application or your own applications.
Dingtek will provide protocol and SDK without signing NDA after you place order.
| Dimensions: | 122*96*96mm(Body), 140*30*30mm(Pressure part). |
|---|---|
| Weight | 820g |
| level accuracy : | 0.5%FS |
| Resolution | 1mm |
| Cable Length | 2.5m (Customizable) |
| Color: | Blue (body), Silver (pressure part). |
| Material : | ABS(body), 304#stainless steel (pressure part), PTFE (cable between pressure part and body). |
| Temperature range : | -30℃ to 85℃ |
| Internal Battery : | Non-rechargeable Lithium Thionyl Chloride Battery, ER26500*1，8500mAh@ 3.6V |
| Wireless Option : | NB-IoT / LoRaWAN / Sigfox / 4G-LTE / NB-IoT+Cat-M+GPRS. |
