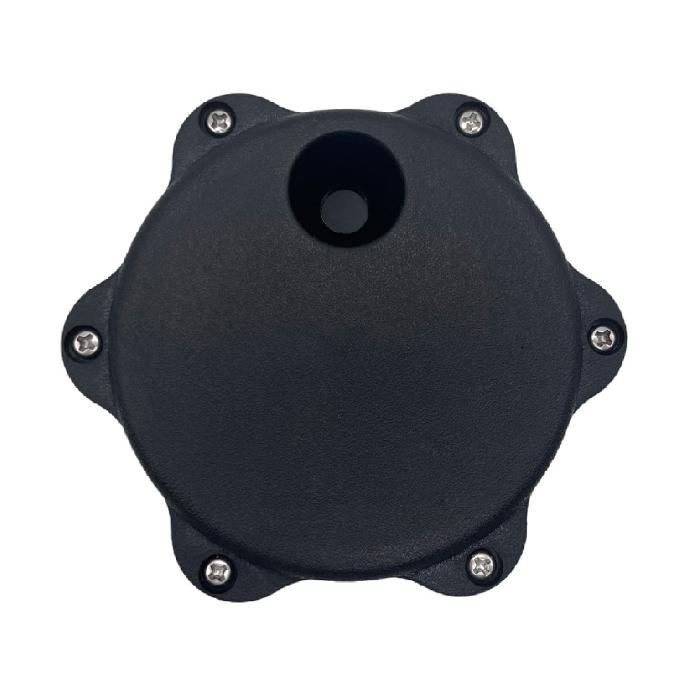

 GEDC400 Smart Manhole Sensor

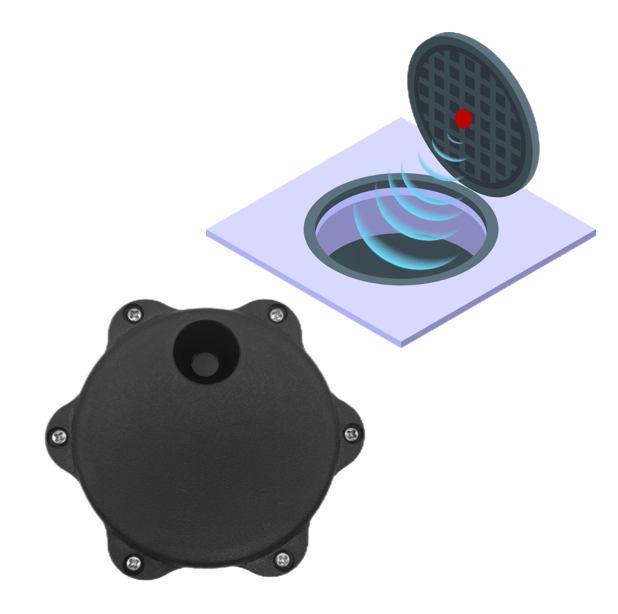

GEDC400 smart manhole Sensor is specially designed for the detection of well covers such as electrical and sewage system. When the well cover shift, open or other abnormal situation appears, the device can timely alarm output to the use to indicate the current situation or status.
Base on low power consumption, battery can work for more than 5 years if report 4 times every day.
Features
- Manhole cover movement monitoring
- IP68 Waterproof
- 8500mah non-rechargeable lithum battery
- Low power consumption
- Accurate Measurement
- Easy Installation & Integration
Network Diagram
Through the built-in NB-IoT/Lorawan/Sigfox module, the detector can pass status information to the base station, network server, then the application server. Users can remotely monitor the manhole status, whether moved after installation or not.
SAAS
| Dimension : | 119*119*40mm |
|---|---|
| Net weight: | 140g |
| Color: | Black |
| Principle: | Accelerating detection |
| Communication: | NB-loT/Lorawan/Sigfox |
| Frequency : | NB-IoT: B3/B5/B8/B20/B28 LoRaWAN: CN470/EU868/AU915 /US915/AS923 Sigfox: RCZ1/RCZ2/RCZ3/RCZ4 |
| Internal battery : | Lithium battery 8500mAh@3.6V |
| Battery life : | More than 5 years |
| Power consumption : | <120mA @3.6V(upload;<40ua@3.6V(sleep) |
| Operation temperature : | -20~+70℃ |
| Storage temperature : | -40~+85℃ |
| Protection level : | IP68 |
