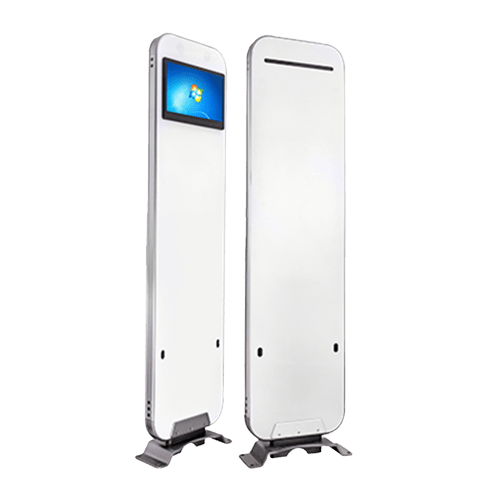

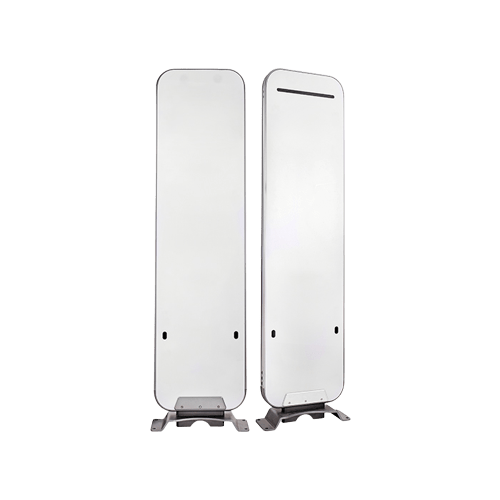

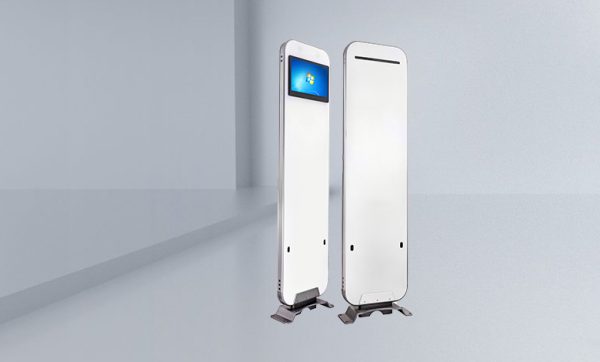

GE-HL-i3 RFID Tracking Gate
Model: GE- HL-i3 RFID Portal Access Control RFID Tracking Gate
- Linux 2.6 / Android 9.0
- Imping R2000
- Read Range: 0-4M
- Frequency: 865-928MHz
- Powered by Impinj R2000/E710 chipset for maximum tag detection performance.
- Built-in infrared sensor, which can trigger tag reading, or judge the entry and exit.
- Built-in alarm light and buzzer, sensitive alarm, safe and reliable.
- The antenna is specially designed to achieve a horizontal narrow beam design for accurate signal coverage with no blind spots.
- Optional LED display to connect to an external computer via HDMI port to display apps.
Support RSSI, antenna detection, and online updates.
- Support RSSI, antenna detection, and online updates.
- Anti-collision mechanism algorithm for maximum tag detection performance.
- Built-in alarm light and buzzer, sensitive alarm, safe and reliable.
- Internal infrared sensor, which can trigger tag reading, or judge the entry and exit.
- Optional LED display to connect to an external computer via HDMI port to display apps.
- The antenna is specially designed to achieve a horizontal narrow beam design for accurate signal coverage with no blind spots.
| HARDWARE, OS AND FIRMWARE MANAGEMENT | |
|---|---|
| Processor | ARM9, 400MHz |
| Memory | Flash 128MB；DRAM 32 MB |
| Operating System: | Linux 2.6 |
| Display | 13.1″ TFT LED Capacitive touch screen, 1920*1080 (optional) |
| Firmware Upgrade | Windows – .NET, C++ and Java SDK |
| Dimensions | 1500（H） * 385（W） * 45mm（T） |
| Weight | One pair, about 20kg |
| RFID CHARACTERISTICS | |
| Air Protocols | ISO/IEC 18000-6B，6C/EPC C1Gen2、C2Gen2，GB/T 29768-2013 |
| Frequency | EU: 865-868MHz (ETSI EN 302208) |
| Output Power: | 0dBm-35dBm (±1dBm) adjustable |
| Channel bandwidth: | ＜200KHz |
| Reading Distance | 0-4m (Pre-factory setting) |
| Anti-collision | Support multi-tag / intensive inventory |
| Work Mode: | Fixed/hop frequency optional |
| CONNECTIVITY | |
| Communications | RJ45, RS232, optional HDMI video/touch interface |
| Power supply | DC 24V/2.5A (DC 9V ~ 30V,60W) |
| ENVIRONMENTAL | |
| Operating Temp. | -20℃～+70℃ |
| Storage Temp. | -40℃～+85℃ |
| Humidity | 5%RH～95%RH 无冷凝 (+25℃) |
| Sealing | IP45 |
