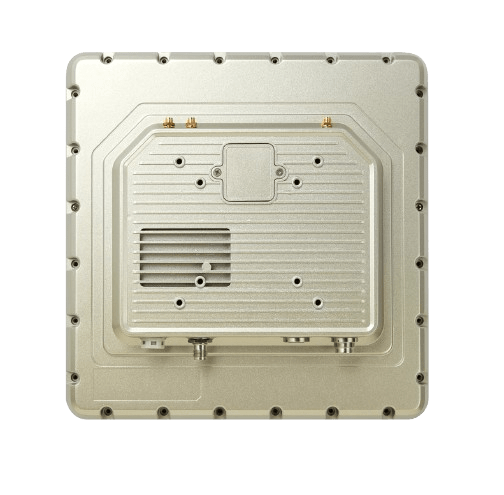

GE-HH100 Android Integrated RFID reader
Model: GE-HH100 Android Integrated RFID reader
• Impinj E710 RAIN RFID reader chip (Indy R2000 optional)
• Octa-core, open Android 9.0 OS
• Higher Sensitivity -85dbm
• Web platform support HttpPost, MQTT, remote control
• PoE (max 35dbm) Optional
• WiFi/Bluetooth/4G all built-in
• IP67 level max for all weather
• LED alarm to show reading/working status
Smart IoT device is one series of Android UHF RFID fixed reader, integrated design but support 1 additional antenna port. Running with Impinj Indy R2000 chipset/ newest Impinj E710 RAIN RFID reader chip upgradable, and operated on Octa-core Android 9.0 operation system. It not only includes built-in 4G, WiFi, and Bluetooth as standard, and PoE (IEEE 802.3 af/at/bt) optional, but also supports built-in web management functions such as remote.
- IMPINJ E710 chip set new benchmark for performance, integration, and ease of use
- Powerful Otca-core Android 9.0 OS, convenient for development and integration
- Integrated design but support 1 additional antenna port.
- Support MQTT, Http Post, MySQL database to connect to server
- Rich communication interface includes WiFi, Bluetooth, 4G etc.
- Industrial level die-cast aluminum housing, IP67 protection level for all weather
- Acrylic surface provide clear light indicator for reader
- Covers different level for kinds of applications: vehicle management, ETC, E parking, access control, personal tracking and so on
| System | |
|---|---|
| Processor | MT6765, Octa-Core 2.3Ghz |
| Memory | Flash 16GB; DRAM2GB |
| Operating System: | Android 9.0 OS (open for developers) |
| Firmware Upgrade | Demo software / Web |
| API Support | Windows system– .Net / .Net core / C++ / Java SDK Android system- Java Linux system – Java, SDK |
| Physical | |
| Dimensions | 276mm×276mm×71mm |
| Housing Material | Die-cast aluminum |
| Weight | Mainbody 1.8Kg, Accessories 1.5kgs G.W. 4.5Kgs |
| Visual Status Indicators | Power/Status, Ant 1-2 |
| Interfaces & Connectors | RJ45/AC/RS232 3 in one cable 2m GPIO (Relay, Wiegand, RS485) cable 2m |
| RFID | |
| Chipset | Impinj RAIN RFID E710 / Indy R2000 (optional) |
| Air Protocols | ISO/IEC18000-6B, 6C / EPC C1Gen2 C2GEN2 optional |
| Frequency | 902-928MHz , 865-868MHz, 920-925MHz |
| Output Power | 0dBm-35dBm (±1dBm) adjustable Integrated antenna 9dbi |
| Environment | |
| Operating Temperature | -25℃～+70℃ |
| Storage Temperature | -40℃～+85℃ |
| Operating Humidity | 5-95% non-condensing (+25℃) |
| Protection Level | IP65-67 optional |
