Product Specifications:
| Performance parameter | |
|---|---|
| Frequency: | 860-960MHz |
| Protocol： | ISO/IEC 18000-6C EPC global GEN2 Class1 |
| Chip: | M4QT/H9 |
| Sensitivity: | -17dB--19dB |
| Reading range: | 0-8m |
| EPC area: | 96bits |
| User area: | 512bits |
| TID area: | 32bits |
| Access password: | 32 bits |
| Kill password: | 32 bits |
| Working mode: | Passive |
| Data storage: | >10 years |
| Rewriting: | >100000 times |
| Polarization: | Liner polarization |
| Physical parameter | |

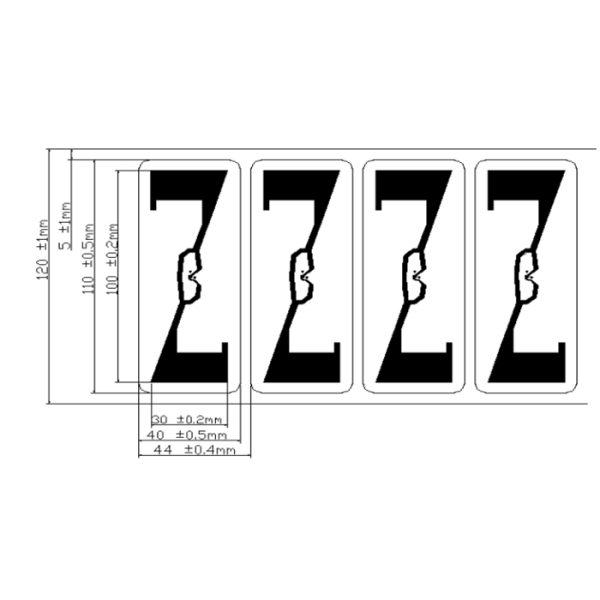

| Size: | 110X40mm(±0.5mm) |
| Housing Material: | PET film, special fragile Paper |
| Weight: | 1.5g/pc |
| Package: | 1000～3000pcs/roll |
| Installing: | with self adhesive |
| Working temperature: | -20℃～75℃ |
| Storage temperature | -40℃～80℃ |
| Relative humidity: | 5%～95% RH non-condensing |
